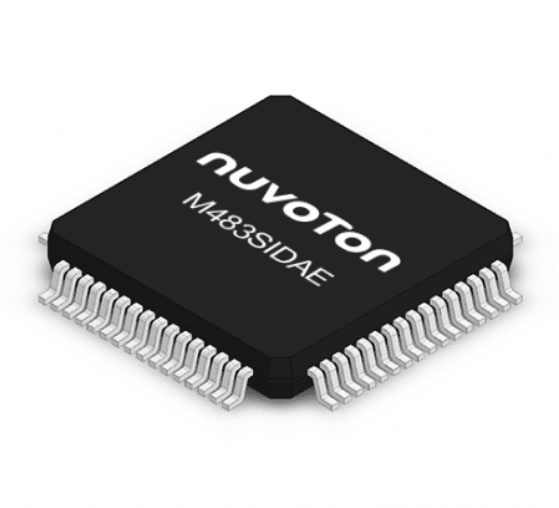

Nuvoton M483SIDAE 32-Bit Arm Cortex-M4F Microcontroller IC-2779-D
The Nuvoton M483SIDAE is a 32-bit Arm Cortex-M4F microcontroller operating at up to 192 MHz. It features 512 KB Flash, 160 KB SRAM, a 16-channel 12-bit ADC, 24-channel 16-bit PWM, and CAN, USB, UART, SPI, and I²C interfaces.
The Nuvoton M483SIDAE is a high-performance microcontroller designed for industrial control and IoT applications. Powered by an Arm Cortex-M4F core running at up to 192 MHz, it integrates 512 KB dual-bank Flash, 160 KB SRAM, a 16-channel 12-bit ADC, and 24-channel 16-bit PWM. Its CAN, USB 2.0, UART, SPI, and I²C interfaces support advanced connectivity and real-time embedded control systems.
Key Features
Core: 32-bit Arm Cortex-M4F with DSP extension
Maximum operating frequency: 192 MHz
Flash memory: 512 KB dual-bank
SRAM: 160 KB, including 32 KB cache
Secure Protection ROM: 4 KB
One-Time Programmable ROM: 2 KB
Operating voltage: 1.8–3.6V DC
Operating temperature: -40°C to +105°C
ADC: 16-channel, 12-bit, up to 5 MSPS
DAC: 2-channel, 12-bit
PWM: 24-channel, 16-bit
Timers: Four 32-bit timers
Communication interfaces: Up to 6 UART, 4 SPI, 3 I²C, 2 CAN 2.0B, and USB 2.0
Peripheral DMA: 16 channels
Additional features: Secure Boot, MPU, RTC, external bus interface, and LCD parallel interface
Package: LQFP-64
Applications
Industrial automation and control
Internet of Things (IoT) devices
Smart energy meters
Industrial communication equipment
Data acquisition systems
Motor and motion control
USB-enabled embedded systems
Real-time monitoring equipment
