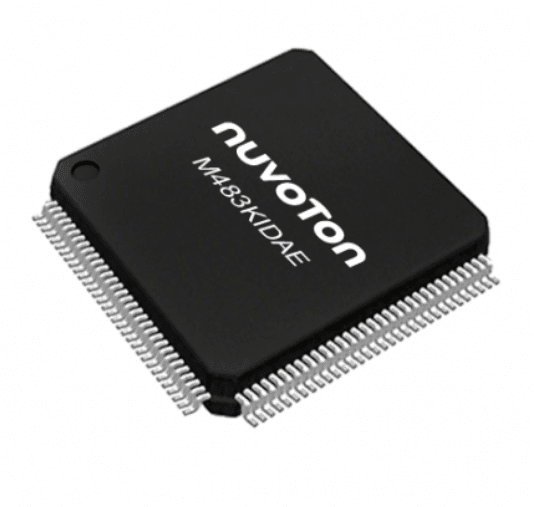

Nuvoton Technology Corporation M483KIDAE - IC-2716-D
₹350.00
Product Details
The M483KIDAE is a high performance, low power microcontroller powered by the Arm® Cortex®-M4F core with DSP extension. It can run up to 192 MHz with 175 µA/ MHz dynamic low power consumption. The 512 KB embedded dual bank Flash memory supports OTA ( Over-The-Air ) firmware upgrade, and the 160 KB embedded SRAM includes 32 KB cache to speed up external SPI Flash code execution. The factory pre-loaded bootloader delivers Secure Boot functionality to provide the code integrity check in embedded Flash memory. The built-in Secure Protection ROM provides a safe space for saving confidential program or data. One-Time Programmable ROM is also included for product life-cycle management.
M483KIDAE Specifications:-
Core and System:-
- Arm® Cortex® M4F core, running up to 192 MHz-192 MHz at1.8V-3.6V; 160 MHz at 1.62V
- Built-in Memory Protection Unit (MPU)
- Built-in Nested Vectored Interrupt Controller (NVIC)
Flash:-
- Dual bank 512/256 KB on-chip Application ROM (APROM) for Over-The-Air (OTA) upgrade. (M48xID)
- Dual bank 512 KB on-chip Application ROM (APROM) for Over-The-Air (OTA) upgrade. (M487KMCAN)
- Single bank 256/128 KB on-chip Application ROM (APROM). (M48xGC/M48xE8)
- Four eXecute-Only-Memory regions for data protection.
SRAM:-
- Up to 160 KB on-chip SRAM includes: (M48xID/ M487KMCAN)32 KB SRAM located in bank 0 that supports hardware parity check and retenion mode; Exception (NMI) generated upon a parity check error
- 96/32 KB SRAM located in bank 1
- 32 KB SRAM located in bank 2 that can be used as cache for external SPI Flash memory
- Up to 128/64 KB on-chip SRAM includes: (M48xGC/M48xE8)
- 32 KB SRAM located in bank 0 that supports hardware parity check and retenion mode; Exception (NMI) generated upon a parity check error 96/32 KB SRAM located in bank 1
Attachment:-
