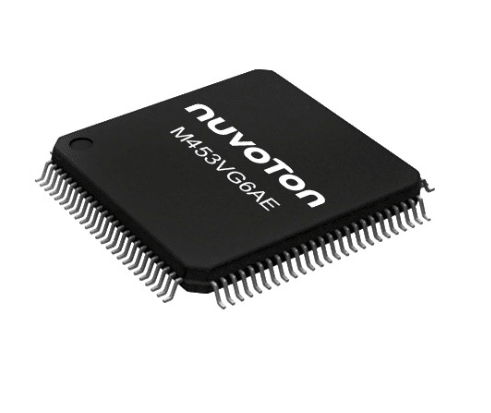

Nuvoton Technology Corporation M453VG6AE - IC-3081-D
₹288.00
Product Details
The NuMicro® M453 CAN series 32-bit microcontroller ( MCU ) is embedded with the ARM® Cortex®-M4 core and operating at 2.5V ~ 5.5V and - 40 ℃ ~ 105 ℃ , and provides 22.1184 MHz internal oscillator ( 1 % accuracy at 25 ℃ , 5V ) , Data Flash configurable and high immunity ( 8 kV ESD, 4 kV EFT ) . Package types include LQFP48, LQFP64 and LQFP100.
Specifications M453VG6AE:-
Core:
- ARM® Cortex
- M4F core running up to 72 MHz
- Supports DSP extension with hardware divider
- Supports IEEE 754 compliant Floating-point Unit (FPU)
Flash Memory:
- Supports 40/72/128/256 KB application ROM (APROM)
- Supports 4 KB Flash for loader (LDROM)
- Supports Data Flash with configurable memory size
- Supports In-System-Programming (ISP), In-Application-Programming (IAP) update embedded flash memory
- Supports 2 KB page erase for all embedded flash
GPIO:
- Four I/O modes
- TTL/Schmitt trigger input selectable
- I/O pin configured as interrupt source with edge/level trigger setting
- Supports high driver and high sink current I/O (up to 20 mA at 5V)
- Supports software selectable slew rate control
- Supports 5V-tolerance function for following pins
- PA.0 ~ PA.15, PC.0 ~ PC.7, PC.9 ~ PC.15, PD.5 ~ PD.8, PD.10 ~ PD.15, PE.0 ~ PE.14, PF.2, PF.5 ~ PF.6 (M45xG/M45xE Only)
- PA.0 ~ PA.15, PB.14 ~ PB.14, PC.0 ~ PC.8, PC.10 ~ PC.13, PD.4 ~ PD.7, PD.12 ~ PD.15, PE.0 ~ PE.1, PE.3 ~ PE.5, PE.8 ~ PE.13, PF.2, PF.5 ~ PF.7
- Supports up to 85/55/42 GPIOs for LQFP100/64/48 respectively
Applications of M453VG6AE:-
- Industrial Automation
- PLCs
- Inverters
- Home Automation
- Security Alarm System
- Power Metering
- Portable Data Collector
- Portable RFID Reader
- System Supervisors
- Smart Card Reader
- Printer
- Bar Code Scanner
- Motor Control
- Digital Power
To know more about all latest Products of Nuvoton Microcontroller you can visit at www.campuscomponent.com
