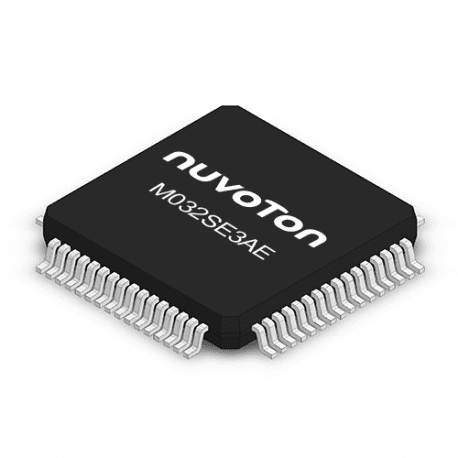

Nuvoton Technology Corporation M032SE3AE - DE-2334-D
Nuvoton NuMicro M032SE3AE is low-voltage operation MCU based on Arm® Cortex®-M0 core with 32-bit hardware multiplier/divider. Operating frequency up to 48 MHz with 1.8V ~ 3.6V operating voltage, equipped 128 KB Flash and 16 KB SRAM .
With its special designed performance such as 2 MSPS ADC , 96 MHz PWM , 24 MHz SPI , 6 MHz UART . Nuvoton M032SE3AE can be applied at industrial control and consumer applications, provide a fast and precise data conversion of the voltage, current and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.
M032SE3AE also provides plenty of peripherals included up to 1 set USB 2.0 full speed device ( crystal-less design ) , 1 set Universal Serial Control Interface ( USCI ) , 3 set UART , 1 set SPI /I²S, 2 set I²C , 16-ch 12-bit ADC , 12-ch 16-bit PWM etc. for various application demand. And it can operate over a wide temperature range as - 40°C~ + 105°C. Pin to Pin is compatible in same package for full series.
Get the high-quality Nuvoton M032SE3AE at the best price in India.
- Laser Distance Meter
- Air Detector/Cleaner
- Mobile LCD Panel Controller
- Micro Printer
- WPC Wireless Charger
- Voltage range: 1.8 V to 3.6 V
- Temperature range: - 40°C to +105°C
- EFT 4.4 kV
- ESD HBM 6 kV
- Arm® Cortex®-M0 processor running up to 48 MHz
- 32-bit H/W multiplier/divider
- 128 KB Flash
- 16 KB SRAM
- 4 KB Flash for user program loader ( LDROM )
- ISP / ICP / IAP programming
- 512 bytes SPROM ( Security Protection ROM )
- 4 to 32 MHz HXT crystal oscillator or external input clock
- 32.768 kHz LXT crystal oscillator or external input clock for low-power system operation
- Internal 48 MHz HIRC oscillator with variation ± 2 % within all temperature range
- Internal 38.4 kHz LIRC for Low-power operating mode
- One PLL up to 96 MHz for high speed module operation
- Up to Four 32-bit timers
- One 24-bit SysTick timer
- 12 channels 96 MHz 16-bit PWM
- 16 channels 12-bit 2 MSPS ADC
- Two rail-to-rail comparators ( ACMP )
- 5 channels PDMA
- CRC-CCITT, CRC-8, CRC-16 and CRC-32 polynomials
- 2-set of 6 MHz UART interfaces
- 1-set of UART for simple Tx/Rx operation
- 2-set of 1 MHz I²C interfaces
- 1-set of 24 MHz SPI /I²S interface
- 1-set of USCI interfaces that supports UART , SPI and I²C mode
- External Bus Interface ( EBI ) , supports 8-/16-bit data with maximum external address space of 1 MBytes
- 51 GPIO ( except analog pins, Support 5V tolerant I/O )
