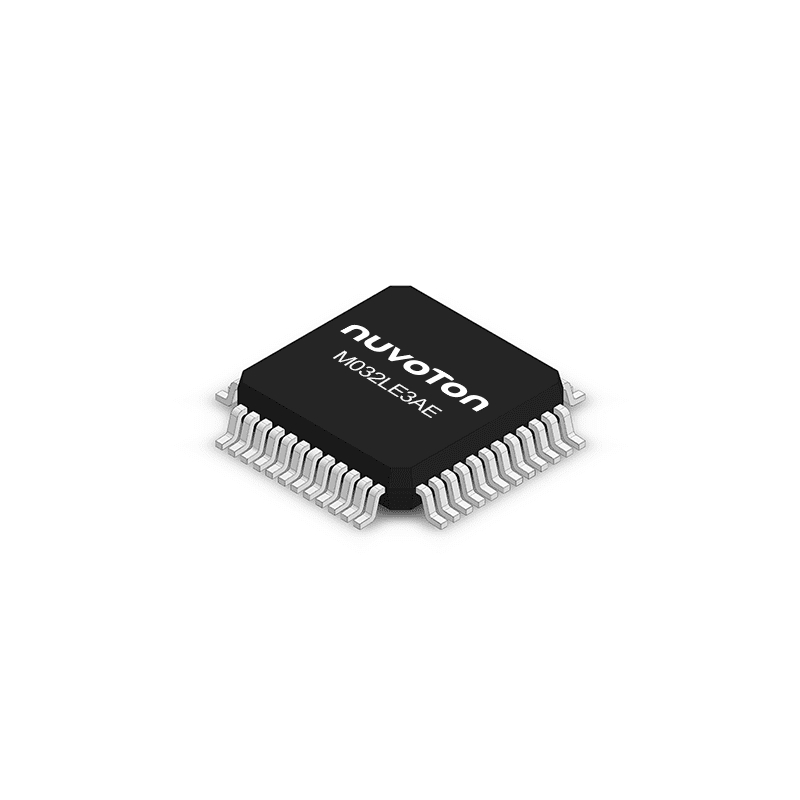

Nuvoton Technology Corporation M032LE3AE - DE-1202-D
Non-returnable
₹100.00
Product Details
The Nuvoton M031/M032 series supports up to 128 Kbytes of Flash memory, up to 16 Kbytes of SRAM, for the program code and runtime storage. A special design 512 bytes SPROM (Security Protection ROM) is to protect user’s code or library been read. It supports 4 Kbytes Flash memory of ISP (In-System Programming) to easily upgrade new firmware and the IAP (In-Application Programming) feature that can upgrade firmware while program is running.
Get the high-quality Nuvoton M032LE3AE at the best price in India.
The enhanced fast 2 MSPS conversion rate of 12-bit ADC, comparator and PWM control provide a fast and precise data conversion of the voltage, current, and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.
Nuvoton M032LE3AE Features:-
Core and System:
- Arm® Cortex®-M0
- Arm® Cortex®-M0 processor, running up to 48 MHz
- Built-in Nested Vectored Interrupt Controller (NVIC)
- 24-bit system tick timer
- Programmable and maskable interrupt
- Low Power Sleep mode by WFI and WFE instructions
Hardware Divider (HDIV):
- Signed (two’s complement) integer calculation
- 32-bit dividend with 16-bit divisor calculation capacity
- 32-bit quotient and 32-bit remainder outputs (16-bit remainder with sign extends to 32-bit)
- 6 HCLK clocks taken for one cycle calculation Brown-out Detector (BOD)
- Two-level BOD with brown-out interrupt and reset option. (2.5V/2.0V)
Low Voltage Reset (LVR) :
- LVR with 1.7V threshold voltage level
Security :
- 96-bit Unique ID (UID)
- 128-bit Unique Customer ID (UCID)
Flash :
- Up to 128 KB application ROM (APROM)
- Up to 4 KB Flash for user program loader (LDROM)
- 512 bytes page erase for all embedded flash
- Supports CRC-32 checksum calculation function
- Hardware external read protection of whole flash memory by Security Lock Bit
