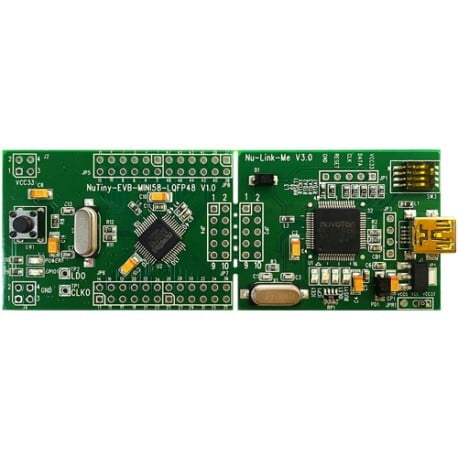

Nuvoton Nutiny-Mini58L NT-DE-1189-D

Nuvoton Nutiny-Mini58L NT-DE-1189-D

Non-returnable
₹2,800.00 ₹2,900.00
SKU
DE-1189-D
SPQ
1
MOQ
1
Visible Manufacture Name
Nuvoton
Visible Manufacturer’s code
NT-MINI58L
Weight (gm)
100gm
Brand/MFR No
Nuvoton/NT-MINI58L
Quantity
Add to Cart
Product Details
The NuMicro® Mini58 series is pin-to-pin and function compatible with the NuMicro® Mini51 series, the 32-bit microcontroller (MCU) embedded with the ARM® Cortex® -M0 core. The Mini58 series can bridge the gap and replace the cost equivalent to traditional 8- and 16-bit microcontroller by 32-bit performance and rich functions. The Mini58 series supports a wide range of applications from low-end, price sensitive designs to computing-intensive ones and provides advanced high end features in economical products.

Get the high-quality Nuvoton Nutiny-Mini58L NT at the best price in India.

The Mini58 series can run up to 50 MHz which is faster than 24 MHz in Mini51 series, and operate at a wide voltage range of 2.5V ~ 5.5V and temperature range of -40℃ ~ +105℃. For the Mini58 series, the embedded program flash size upgrades from 16 Kbytes to 32 Kbytes and SRAM upgrades from 2 Kbytes to 4 Kbytes. The Mini58 series also offers size configurable Data Flash (shared with program flash), and 2.5 Kbytes flash for the ISP.

Nuvoton Nutiny-Mini58L NT Features:-
Core:-
  • ARM® Cortex®-M0 core running up to 50 MHz
  • One 24-bit system timer
  • Supports low power Idle mode
  • A single-cycle 32-bit hardware multiplier
  • NVIC for the 32 interrupt inputs, each with 4-level of priority
  • Supports Serial Wire Debug (SWD) interface and two watchpoints/four
Memory:-
  • 32 KB Flash memory for program memory (APROM)
  • Configurable Flash memory for data memory (Data Flash)
  • 2.5 KB Flash for loader (LDROM)
  • 4 KB SRAM for internal scratch-pad RAM (SRAM)
I/O Port:-
Up to 30 general-purpose I/O (GPIO) pins for LQFP-48 package

Four I/O modes:-
  • Quasi-bidirectional input/output
  • Push-Pull output
  • Open-Drain output
  • Input only with high impendence
  • Optional Schmitt trigger input
Timer:-
  • Provides two channel 32-bit Timers; one 8-bit pre-scaler counter with 24-bit up-timer for each timer
  • Supports Event Counter mode
  • Supports Toggle Output mode
  • Supports external trigger in Pulse Width Measurement mode
  • Supports external trigger in Pulse Width Capture mode
UART (Universal Asynchronous Receiver/Transmitters):-
  • Two UART devices
  • Buffered receiver and transmitter, each with 16-byte FIFO
  • Optional flow control function (CTSn and RTSn)
  • Supports IrDA (SIR) function
  • Programmable baud-rate generator up to 1/16 system clock
  • Supports RS-485 function


To know more about all latest Products of Microcontroller and Development Boards you can visit at  www.campuscomponent.com
