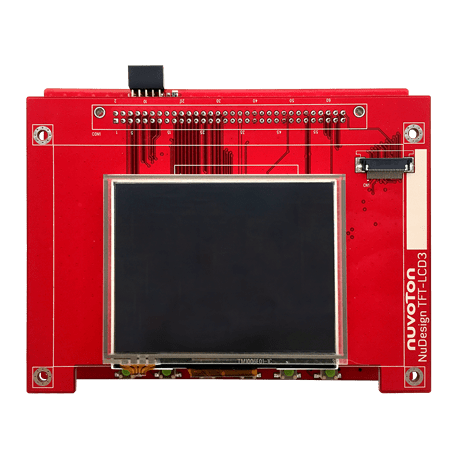

Nuvoton NK-N9H20-DE-503-D
Non-returnable
₹12,500.00
SKU
DE-503-D SPQ
1 MOQ
1 Visible Manufacture Name
Nuvoton Visible Manufacturer’s code
NK-N9H20 Weight (gm)
100gmStock Available
1 Choose Quantity
Product Details
The N9H20 series is built on the ARM926EJ-S CPU@200MHz, synchronous DRAM, 2D BitBLT accelerator, LCD panel interface, USB 1.1 Host & USB2.0 HS Device core and integrated with JPEG codec, 32-channel SPU (Sound Processing Unit), ADC, DAC, for meeting various kinds of application needs for saving the BOM cost and makes the best choice for LCD application of cost/performance products. Maximum resolution is XVGA (1,024x768)@TFT LCD panel. The 2D BitBLT accelerator accelerates the graphic computation to make the rendering smooth and off-load CPU to save power consumption.
Get the high-quality Nuvoton NK-N9H20 at the best price in India.
Nuvoton NK-N9H20 Features:-
CPU:
- ARM926EJ-S 32-bit RISC CPU with 8KB I-Cache &8KB D-Cache
- Frequency up to200MHz@1.8V core power operation voltage
- JTAG interface supported for development and debugging
Internal SRAM & ROM:
- 8KB internal SRAM and 16KB IBR internal booting ROM supported
- IBR booting messages displayed by UART console for debugging supported
Different system booting modes supported:
- Memory card
- SD card or eMMC Flash device
- SD-to-NAND flash bridge
- Raw NAND Flash
- SPI Flash
- USB
UART :
A high speed UART supported:-
- Baud rate is up to 1M bps
- 4 signals TX, RX, CTS and RTS supported
A normal UART supported:
- Baud rate is up to 115.2K bps
- 2 signals TX and RX supported only
SPI:
Two SPI controller is supported:-
- Both master and slave mode are supported in SPI interface
- Two chip selection signals for two SPI devices
I2C:
- One I2C channel supported
- Compatible with Philips’s I2C standard and only master mode supported
- Multi-master operation supported
To know more about all latest Products of Microcontroller and Development Boards you can visit at www.campuscomponent.com
