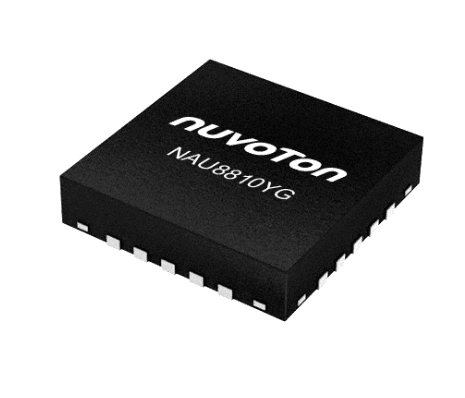

Nuvoton NAU8810YG - DE-2335-D
Visible Manufacture NameNuvoton
Visible Manufacturer’s codeNAU8810YG
The NAU8810 a cost effective low power wideband Monophonic audio CODEC. It is suitable for a wide range of audio applications, including voice telephony. Supported functions include a 5-band Graphic Equalizer, Automatic Level Control (ALC) with noise gate, PGA, standard I2S or PCM audio interface, optional PCM time slot assignment, and a full fractional-N on-chip PLL. This device includes one differential microphone input, and multiple variable gain control stages in the audio paths. Both a Mono headset/line-level output and a high power differential BTL speaker driver output are provided.
Get the high-quality Nuvoton NAU8810YG at the best price in India.
24-bit signal processing linear Audio CODEC
- Audio DAC: 93dB SNR and -84dB THD
- Audio ADC: 91dB SNR and -79dB THD
- Support variable sample rates from 8 - 48kHz
- Integrated programmable Microphone Amplifier
- Integrated BTL Speaker Driver 1 W (8Ω / 5V)
- Earphone / Speaker / Line-Output Mixing / Routing
- Integrated Headset Driver 40mW (16Ω / 3.3V)
- I2S digital interface PCM time slot assignment
- 2-Wire serial control Interface (I2C style; /Write capable)
