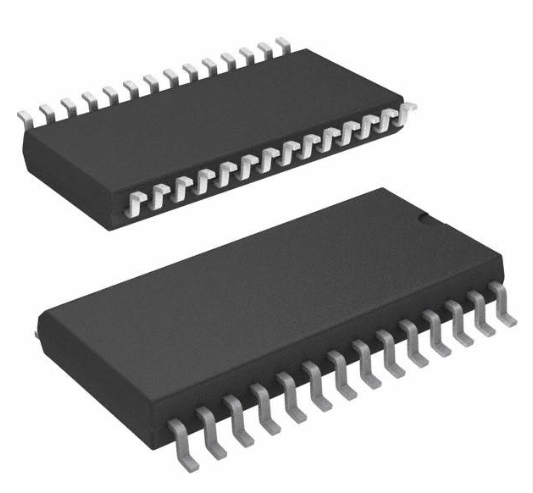

Nuvoton Technology Corporation N79E715AS28 IC-4337-D
The Nuvoton N79E715AS28 is an 8-bit 8051-based microcontroller operating at up to 24 MHz. It features 16 KB Flash, 512 bytes SRAM, an 8-channel 10-bit ADC, four 10-bit PWM channels, and UART, SPI, and I²C interfaces in an SOP-28 package.
The Nuvoton N79E715AS28 is an 8-bit microcontroller designed for embedded control applications. It integrates 16 KB Flash, 512 bytes SRAM, an 8-channel 10-bit ADC, four 10-bit PWM channels, and UART, SPI, and I²C communication interfaces. With a 2.4V to 5.5V operating range, it is suitable for home appliances, temperature sensing, security systems, LED control, and electronic equipment.
Technical Features
Core: 8-bit 4T 8051
Maximum operating frequency: 24 MHz
Flash memory: 16 KB
SRAM: 512 bytes
Data Flash: Configurable, shared with program Flash
Operating voltage: 2.4–5.5V DC
Operating temperature: -40°C to +85°C
ADC: 8-channel, 10-bit
PWM: Four 10-bit channels
Communication interfaces: UART, SPI, and I²C
Timers: Three 16-bit timers
GPIO: Up to 25 I/O pins
Programming support: ISP and ICP
Additional features: Brown-out reset and keyboard interface
Package: SOP-28
Applications
Home appliances
Temperature control systems
Security and alarm systems
LED and lighting control
Electronic equipment
Embedded control systems
