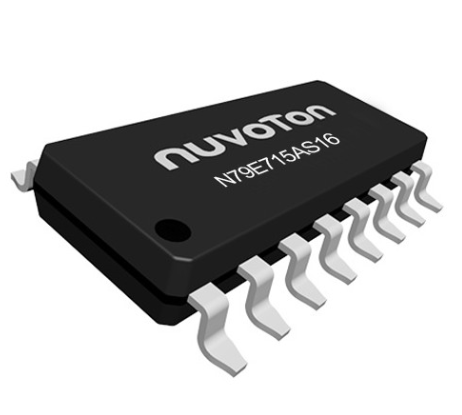

Nuvoton Technology Corporation N79E715AS16 IC-4338-D
The Nuvoton N79E715AS16 is an 8-bit 8051-based microcontroller operating at up to 24 MHz. It features 16 KB Flash, 512 bytes SRAM, a 4-channel 10-bit ADC, four 10-bit PWM channels, and UART and I²C interfaces for compact embedded control applications.
The Nuvoton N79E715AS16 is an 8-bit microcontroller designed for compact embedded control systems. It integrates 16 KB Flash, 512 bytes SRAM, a 4-channel 10-bit ADC, four 10-bit PWM channels, and UART and I²C communication interfaces. Operating from 2.4V to 5.5V, it is suitable for home appliances, temperature control, electronic equipment, and other embedded applications.
Technical Features
Core: 8-bit 4T 8051
Maximum operating frequency: 24 MHz
Flash memory: 16 KB
SRAM: 512 bytes
Configurable Data Flash shared with program memory
Operating voltage: 2.4–5.5V DC
Operating temperature: -40°C to +85°C
ADC: 4-channel, 10-bit
PWM: Four 10-bit channels
Communication: UART and I²C
Timers: Three 16-bit timers
Programming support: ISP and ICP
Brown-out reset and keyboard interface
Package: SOP-16
Applications
Home appliances
Induction cookers and rice cookers
Temperature control systems
Security and alarm systems
LED and lighting control
Electronic control equipment
