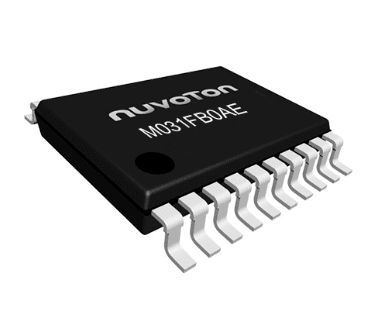

Nuvoton Technology Corporation M031FB0AE - DE-1211-D
Non-returnable
₹60.00
Product Details
The M031/M032 series supports up to 128 Kbytes of Flash memory, up to 16 Kbytes of SRAM, for the program code and runtime storage. A special design 512 bytes SPROM (Security Protection ROM) is to protect user’s code or library been read. It supports 4 Kbytes Flash memory of ISP (In-System Programming) to easily upgrade new firmware and the IAP (In-Application Programming) feature that can upgrade firmware while program is running. The enhanced fast 2 MSPS conversion rate of 12-bit ADC, comparator and PWM control provide a fast and precise data conversion of the voltage, current, and sensor data, and fast response control for the external device, such as the current/voltage feedback from motor control or sensing devices.
Get the high-quality Nuvoton M031FB0AE at the best price in India.
Nuvoton M031FB0AE Target Application:-
- Laser Distance Meter
- Air Detector/Cleaner
- Mobile LCD Panel Controller
- Micro Printer
- WPC Wireless Charger
Nuvoton M031FB0AE Key Features:-
Operating Characteristics :
- Voltage range: 1.8 V to 3.6 V
- Temperature range: - 40°C to +105°C
- EFT 4.4 kV
- ESD HBM 6 kV
Core :
- Arm® Cortex®-M0 processor running up to 48 MHz
- 32-bit H/W multiplier/divider
Memories :
- 16 KB Flash
- 2 KB SRAM
- 2 KB Flash for user program loader ( LDROM )
- ISP / ICP / IAP programming
- 512 bytes SPROM ( Security Protection ROM )
Clocks :
- 4 to 32 MHz HXT crystal oscillator or external input clock
- Internal 48 MHz HIRC oscillator with variation ± 2 % within all temperature range
- Internal 38.4 kHz LIRC for Low-power operating mode
Timers :
- Up to Two 32-bit timers
- One 24-bit SysTick timer
PWM :
- 6 channels 96 MHz 16-bit PWM
Analog :
- 7 channels 12-bit 2 MSPS ADC
CRC :
- CRC-CCITT, CRC-8, CRC-16 and CRC-32 polynomials
Communication interfaces :
- 2-set of 6 MHz UART interfaces
- 1-set of UART for simple Tx/Rx operation
- 2-set of 1 MHz I²C interfaces
- 1-set of 24 MHz SPI /I²S interface
- 15 GPIO ( except analog pins, Support 5V tolerant I/O )
- 96-bit Unique ID ( UID )
- 128-bit Unique Customer ID ( UCID )
