Nordic Semiconductor nRF52840-Dongle- USB Dongle for Eval of NRF52840 - WI-1604-D
₹940.00
Out of stock
Product Details

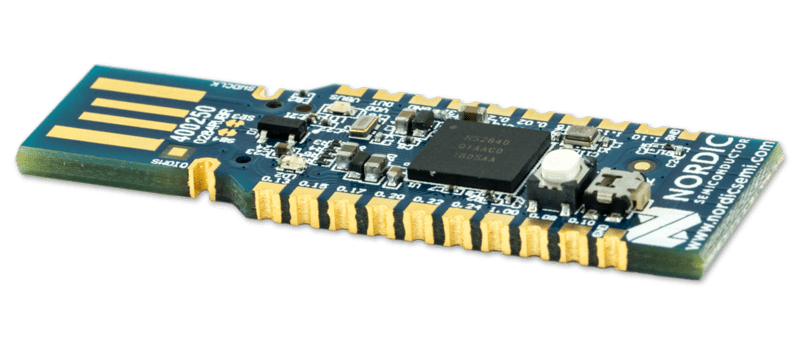

The nRF52840 Dongle is a small, low-cost USB dongle for Bluetooth® Low Energy (LE), Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary applications using the nRF52840 SoC. The dongle is the perfect target hardware for use with nRF Connect for Desktop as it is low-cost but still support all the short range wireless standards used with Nordic devices. The dongle has been designed to be used as a wireless HW device together with nRF Connect for Desktop.
Get the high-quality nRF52840-Dongle- USB Dongle for Eval of NRF52840 at the best price in India.
nRF52840 Dongle can also be used to develop code for the nRF52840 SoC mounted on the dongle. Programming is supported through a USB enabled bootloader. Connectors for external debuggers are available. The dongle is supported by most of the nRF Connect for Desktop apps and will automatically be programmed if needed. It is the number one target for coming nRF Connect apps. In addition, custom applications can be made and downloaded to the dongle. It has a user programable RGB LED, a green LED, a user programmable button as well as 15 GPIO accessible from castellated solder points along the edge.
Key features of nRF52840-Dongle:-
Bluetooth 5.2 ready multiprotocol radio:-
- 2 Mbps
- Long Range
- Advertising Extensions
- Channel Selection Algorithm #2 (CSA #2)
IEEE 802.15.4 radio support :-
- Thread
- Zigbee
- Arm® CortexTM-M4 with floating point support DSP instruction set
- Arm CryptoCell CC310 cryptographic accelerator
- 15 GPIO available via edge castellation
- USB interface direct to nRF52840 SoC
- Integrated 2.4 GHz PCB antenna
- 1 user-programmable button
- 1 user-programmable RGB LED
- 1 user-programmable LED
- 1.7-5.5 V operation from USB or external
Applications of nRF52840-Dongle:-
Advanced wearables:-
- Advanced personal fitness devices
- Connected health
IoT:-
- Connected home sensors and controllers
- Industrial IoT sensors and controllers
Interactive entertainment devices:-
- Advanced remote controls
- Gaming controllers
- Virtual/Augmented Reality applications
