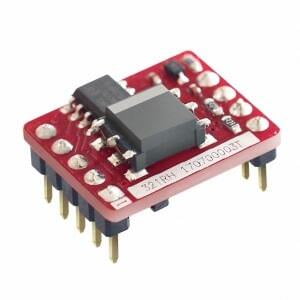

Mornsun TD321D485H-IC-1525-D
₹250.00
Out of stock
Product Details
The main function of the TD321D485H / TD521D485H series is to convert a logic level signal into isolated RS485 differential level signals. The special integrated IC technology of the RS485 transceiver achieves isolation between the power supply and the signal lines isolation, doesRS485 communication and protects the bus all in one and the same module. The product’s isolated power supply withstands a test voltage of up to 3000VDC. Also, they can easily be embedded in the user’s end equipment, to achieve fully functional RS485 network connections.
Get the high-quality TD321D485H Transceiver Module at the best price in India.
TD321D485H Transceiver Module and Communications IC Features:-
- Integrated highly efficient isolated DC-DC converter
- High baud rate of up to 200kbps
- Two-port isolation test voltage(3.0kVDC)
- Operating ambient temperature range: -40℃to+85℃
- The bus supports maximum 64 nodes
- Set isolation and ESD bus protection in one
- EN60950 approval
