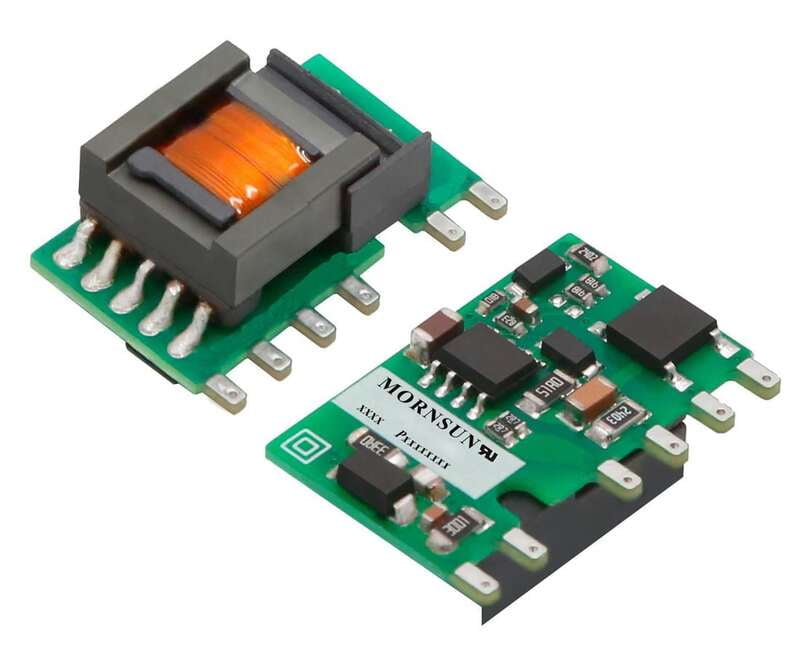

Mornsun Power Supply LS05-13B15R3: 5W, 15V AC-DC Converter - PO-1704-D

LS05-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC.

• Ultra-wide 85 - 305VAC and 70 - 430VDC input voltage range
• Accepts AC or DC input (dual-use of same terminal)
• Operating ambient temperature range -40℃ to +85℃
• Multi application, flexible layout
• Compact size, high power density, green power
• Controllable life and adjustable cost
• No-load power consumption 0.1W
• Output short circuit, over-current protection
• Designed to meet IEC/EN61558, IEC/EN60335 standards
• IEC/EN/UL62368 safety approval

• Dimension 26.40 x 14.73 x 11.00 mm
• Weight 5.2g (Typ.)
• Cooling method Free air convection
