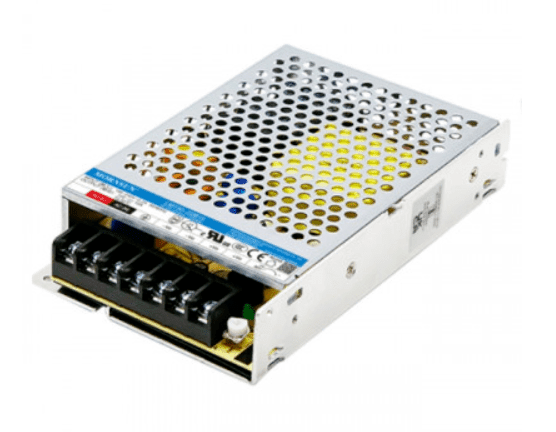

Mornsun Power Supply LM150-22B24 Enclosed AC-DC Power Supply - PO-2920-D
Non-returnable
Out of stock
₹1,012.00
Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
LM150-22B24 Weight (gm)
0.395 Brand/MFR No
MORNSUN/LM150-22B24 Product Details
Get the high-quality LM150-22B24 Enclosed AC-DC Power Supply at the best price in India.
LM150-22Bxx series is one of Mornsun’s enclosed AC-DC switching power supplies. It features AC input and at the same time accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, high reliability, and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, UL/EN/IEC62368, EN60335, and GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
LM150-22B24 Enclosed AC-DC Power Supply Features:-
- Universal 165 - 264VAC or 180 - 370VDCInput voltage
- Accepts AC or DC input
- Operating ambient temperature range: -30℃to+70℃
- Low standby power consumption, high efficiency
- High I/O isolation test voltage up to 4000VAC
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection
- Over-voltage class Ⅲ (designed to meet EN61558)
- Operating altitude up to 5000m
