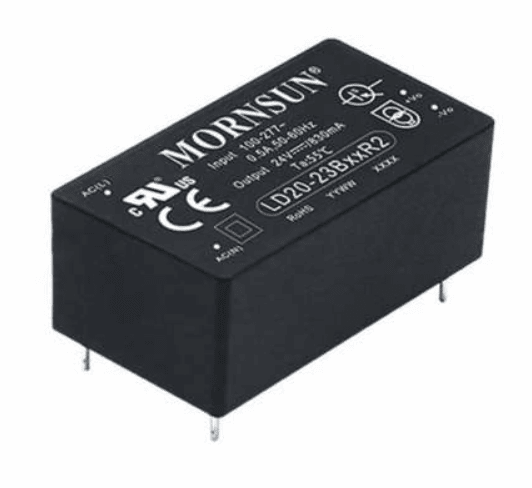

Mornsun Power Supply LD20-23B05R2 : 20W,5V PCB Mountable-Isolated AC-DC Converter - PO-1765-D
Non-returnable
₹450.00
Out of stock
Product Details
Get the high-quality LD20-23B05R2 AC DC Converter at the best price in India.
LD20-23BxxR2 series AC-DC converters are one of Mornsun’s new compact-size power converters. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, and reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558/IEC/EN60601-1/ANSI/AAMI ES60601-1 standards. The converters are widely used in industrial, power, medical treatment, home appliances, instrumentation, communication, and civil applications.
Features of LD20-23B05R2 AC-DC Converter:
- Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
- Operating ambient temperature range: -40°C to +85°C
- Up to 87% efficiency
- No-load power consumption 0.1W
- 5000m altitude application
- OVC III (meet EN61558-1)
- Plastic case meets UL94V-0 flammability
- EMI performance meets CISPR32/EN55032 CLASS B
