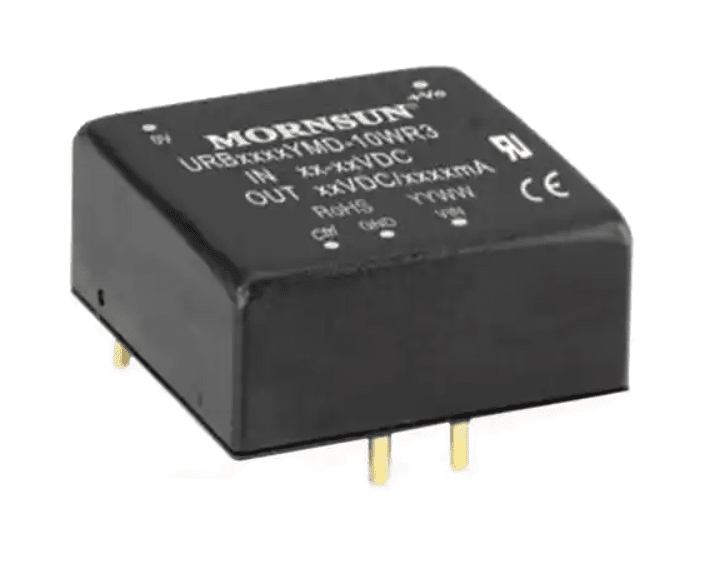

Mornsun Power Supply URB4812YMD-15WR3 DC-DC Converter

Mornsun Power Supply DC-DC Converter URB4812YMD-15WR3 - PO-3075-D

Non-returnable
₹900.00
SPQ:10, MOQ:1
SPQ
10
MOQ
1
Visible Manufacture Name
MORNSUN GUANGZHOU SCIENCE & TECHNOLOGY CO., LTD.
Visible Manufacturer’s code
URB4812YMD-15WR3
Weight (gm)
0.015
Brand/MFR No
MORNSUN/URB4812YMD-15WR3
Quantity
Add to Cart
Product Details

Get the high-quality DC-DC Converter URB4812YMD-15WR3 at the best price in India.


URB4812YMD-15WR3 series of isolated DC-DC converter products feature an ultra-wide 4:1 input voltage with efficiencies of up to 91%, 1500 input to output isolation, an operating ambient temperature range of -40°C to +105°C, input under-voltage protection, output short-circuit, over-current, over-voltage protection, CISPR32/EN55032 CLASS A EMI compliant without external components, which makes them widely used in industrial control, electric power, instruments communication and railway applications. Optional packages are offered for chassis or DIN-rail mounting (A2S, A4S), adding additional input reverse polarity protection.

Features of DC-DC Converter URB4812YMD-15WR3:-
  • Ultra-wide 4:1 input voltage range
  • High efficiency up to 91%
  • I/O isolation test voltage 1.5k VDC
  • Input under-voltage protection, output short-circuit, over-current, over-voltage protection
  • Operating ambient temperature range -40°C to +105°C
  • CISPR32/EN55032 CLASS A EMI compliant without external components
  • Input reverse polarity protection available with chassis(A2S) or 35mm DIN-rail mounting(A4S) version
  • Industry-standard pin-out Meets EN50155 railway standard

Explore all the Latest Products of Mornsun Power Supply

Attachment:-
