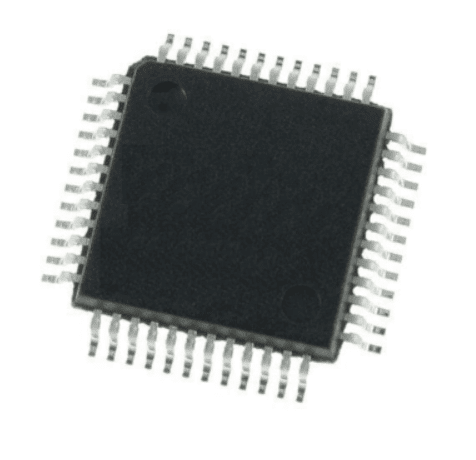

MINDMOTION MM32F0144C4P - IC-2694-D
Out of stock
- Core: 32-bit Arm® Cortex®-M0, up to 72MHz
- Flash Memory: 64KB
- SRAM: 8KB
- Operating Voltage: 2.0V to 5.5V
- Operating Temperature: -40°C to +105°C
- DMA Controller: 5 channels
- I/O Ports: Up to 40
- Clock Sources: 4–24MHz crystal, 8MHz RC, PLL up to 72MHz
₹60.00
SPQ
2500 MOQ
250 Visible Manufacture Name
MINDMOTION Visible Manufacturer’s code
MM32F0144C4P Weight (gm)
0.0081kg Brand/MFR No
MINDMOTION/MM32F0144C4P Product Details
Get the high-quality MINDMOTION MM32F0144C4P at the best price in India.
The MM32F0140 microcontrollers are based on Arm® Cortex®-M0 core. These devices have a maximum clocked frequency of 72MHz, built-in 64KB Flash storage, and contain an extensive range of peripherals and I/O ports. These devices contain one 12-bit ADC, one analog comparator, one 16-bit advanced timer, one 16-bit and one 32-bit general
purpose timers and three 16-bit basic timers, as well as communication interfaces including one I2C, two SPI or I2S, three UART and one FlexCAN interface.
Core and system
- 32-bit Arm® Cortex-M0.
- Frequency up to 72MHz.
Memory
- Up to 64KB embedded Flash storage.
- Up to 8KB SRAM.
- Embedded Bootloader to support In-System-Programming (ISP)
Up to 7 communication interfaces:
- Three UART.
- One I2C.
- Two SPI (support I2S mode).
- One FlexCAN module supports CAN 2.0B interface.
