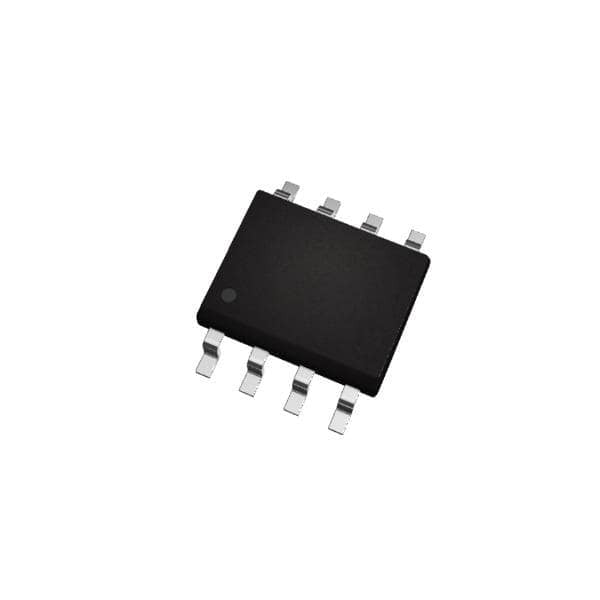

Mindmotion MM32F0010A6T - IC-2693-D
₹20.00
- Core: 32-bit ARM® Cortex®-M0, up to 72MHz
- Memory: 16KB Flash, 2KB SRAM
- Operating Voltage: 2.0V to 5.5V
- ADC: 12-bit, up to 10 channels, 1μs conversion
- Interfaces: 2x UART, 1x I2C, 1x SPI
- Package: QFN20 / TSSOP20
- mindmotion microcontroller
Product Details
This product is a 32bit microcontroller using the high performance ARM Cortex M0 as the kernel. The highest operating frequency is up to 72MHz. It has built in high speed memory, rich enhanced I/O ports and peripherals which are connected to the external bus. This product contains one 12bit ADC, one 16bit universal timer, one 16bit basic timer and one 16bit advanced timer. It also contains standard communication interfaces: onen I2C interface, one SPI interface and two UART interfaces. The operating voltage of this product series is 2.0V∼5.5V. The operating temperature range of conventional type is 40◦C∼+85◦C. Multiple power down modes are provided to ensure the requirements of low power applications.
Kernel and system
- 32 bit ARM Cortex M0 processor as the kernel
- Highest operating frequency up to 72MHz
- Single instruction cycle 32bit hardware multiplier
Memory
- Flash memory up to 16K bytes
- SRAM up to 2K bytes
- Boot loader supports embedded flash and In System Programming (ISP)
Up to 4 communication interfaces
- Two UART interfaces
- One I2C interface
- One SPI interface
