MDBT42Q -WI-294-D

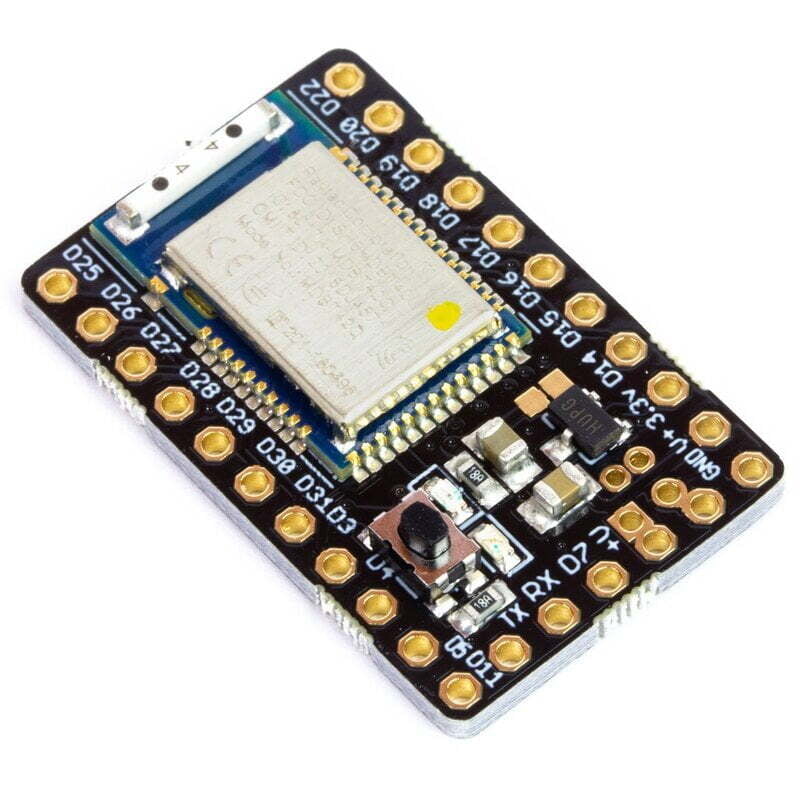

Raytac's MDBT42Q (Bluetooth low energy or BLE) module designed based on Nordic nRF52832 SoC solution, which incorporates: GPIO, SPI, UART, I2C, I2S, PWM, ADC and NFC interfaces for connecting peripherals and sensors.

MDBT42Q  Bluetooth Module:-

• Bluetooth Low Energy
• Espruino JavaScript interpreter pre-installed
• nRF52832 SoC - 64MHz ARM Cortex M4, 64kB RAM, 512kB Flash
• 32 x GPIO (capable of PWM, SPI, I2C, UART) on 0.7mm Pitch, including 8 analog inputs
• 1.7v - 3.6v voltage range (on bare module)
• Built in thermometer
• NFC tag programmable from JavaScript (when an antenna is connected)
• Dimensions: 16mm x 10mm x 2.2mm thick
