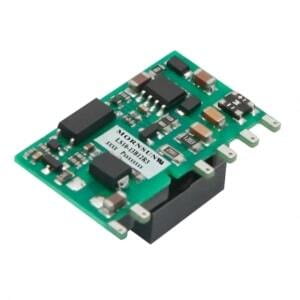

LS10-13B03R3: 10W, 3.3V AC-DC Converter - PO-1707-D
Non-returnable
₹250.00
SKU
PO-1707-D SPQ
20 MOQ
1 Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
LS10-13B03R3: 10W, 3.3V Weight (gm)
0.01 Brand/MFR No
MORNSUN/LS10-13B03R3: 10W, 3.3VStock Available
42 Choose Quantity
Product Details
LS10-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and Class II reinforced insulation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC.
Get the high-quality LS10-13B03R3: 10W, 3.3V AC-DC Converter at the best price in India.
LS10-13B03R3: 10W, 3.3V AC-DC Converter Features:-
- Ultra-wide 85 - 305VAC and 100 - 430VDC input voltage range
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃ to +85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- No-load power consumption as low as 0.1W
- Output short circuit, over-current, over-voltage protection
- Designed to meet IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
LS10-13B03R3: 10W, 3.3V AC-DC Converter Specifications:-
- Dimension : 32.00 x 17.20 x 15.05 mm
- Weight : 8.2g (Typ.)
- Cooling method : Free air convection
To know more about all latest Products of Isolated AC-DC Converter you can visit at www.campuscomponent.com
