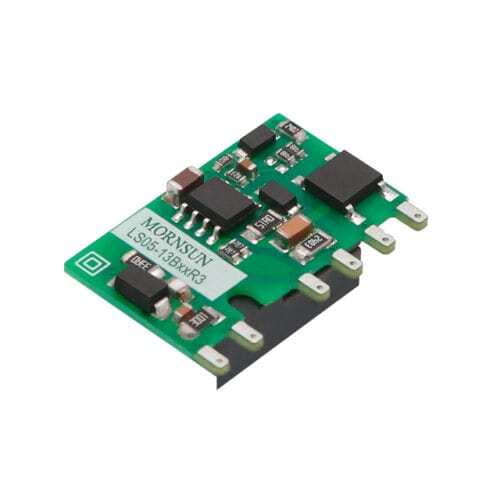

LS05-13B12R3 : 5W, 12V AC-DC Converter - PO-1706-D
Non-returnable
₹135.00
Out of stock
Product Details
LS05-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high reliability, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC.
Get the high-quality LS05-13B12R3 : 5W, 12V AC-DC Converter at the best price in India.
LS05-13B12R3 : 5W, 12V AC-DC Converter Feature:-
- Ultra-wide 85 - 305VAC and 70 - 430VDC input voltage range
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range -40℃ to +85℃
- Multi application, flexible layout
- Compact size, high power density, green power
- Controllable life and adjustable cost
- No-load power consumption 0.1W
- Output short circuit, over-current protection
- Designed to meet IEC/EN61558, IEC/EN60335 standards
- IEC/EN/UL62368 safety approval
LS05-13B12R3 : 5W, 12V AC-DC Converter Mechanical Specifications :
- Dimension 26.40 x 14.73 x 11.00 mm
- Weight 5.2g (Typ.)
- Cooling method Free air convection
To know more about all latest Products of Isolated AC-DC Converter you can visit at www.campuscomponent.com
