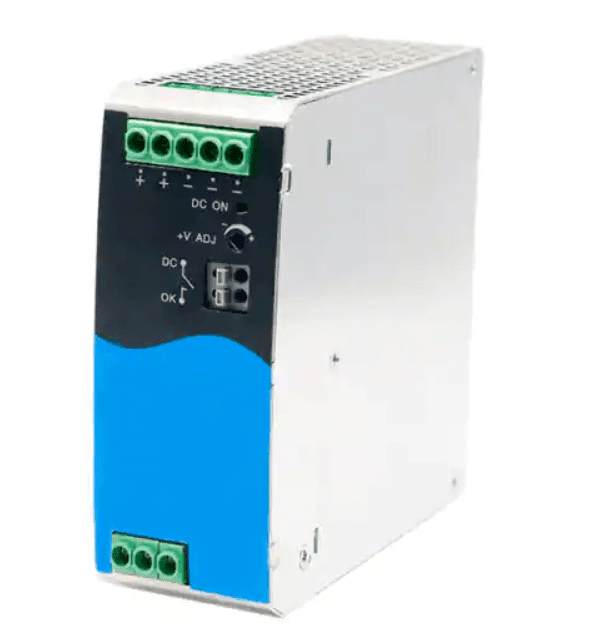

LIF480-10B24R2 AC-DC Din Rail Power Supply - PO-2924-D
Non-returnable
₹6,270.00
SPQ
10 MOQ
1 Visible Manufacture Name
MORNSUN Visible Manufacturer’s code
LIF480-10B24R2 Weight (gm)
980Stock Available
1 Choose Quantity
Product Details
LIF480-10BxxR2 is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail installation for space saving. With good EMC performance, compliant with international IEC/EN/UL/BS EN 62368, UL61010, IS13252(Part1),EN61558 standards for EMC and safety.
Get the high-quality LIF480-10B24R2 AC-DC Power Supply at the best price in India.
LIF480-10B24R2 AC-DC Power Supply Features:-
- Universal 85- 264VAC or 120- 370VDCInput voltage
- Accepts AC or DC input
- Operating ambient temperature range: -40℃to+70℃
- The efficiency is up to 94.5%
- High I/O isolation test voltage up to 3000VAC
- DC OK function
- Active PFC, PF > 0.99
- Low ripple & noise
- Output short circuit, over-current, over-voltage, over-temperature protection, input under voltage protection
- DIN rail TS-35/7.5 or 15 mountable
- Ultra slim design with 48mmwidth
- Withstand 305VAC input voltage 5S
- Safety according to IEC/UL62368, EN61558
To know more about all latest Products of Isolated AC-DC Converter you can visit at www.campuscomponent.com
