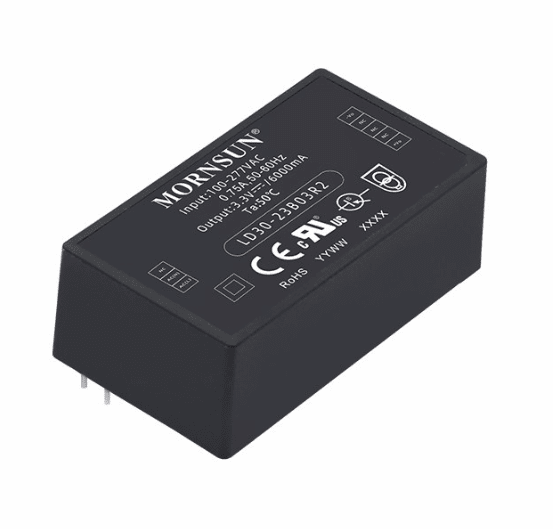

LD30-23B05R2 AC-DC Converter - PO-2665-D
₹530.00
Out of stock
Product Details
1.Description of AC-DC Converter:-
LD30-23BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features wide AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications.
2.Features of AC-DC Converter:-
- Input voltage range: 85 - 305VAC and 120 - 430VDC (48V output) and 100 - 430VDC (others)
- Operating ambient temperature range: -40℃ to +85℃
- Up to 90% efficiency
- No-load power consumption as low as 0.1W
- 5000m altitude application
- EMI performance meets CISPR32/EN55032 CLASS B, EN55014
- Meets surge ±2KV without additional circuits
- Over-voltage category OVCⅢ (meet EN61558-1)
3.Attachment:-
