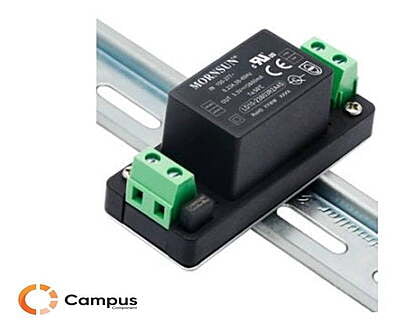

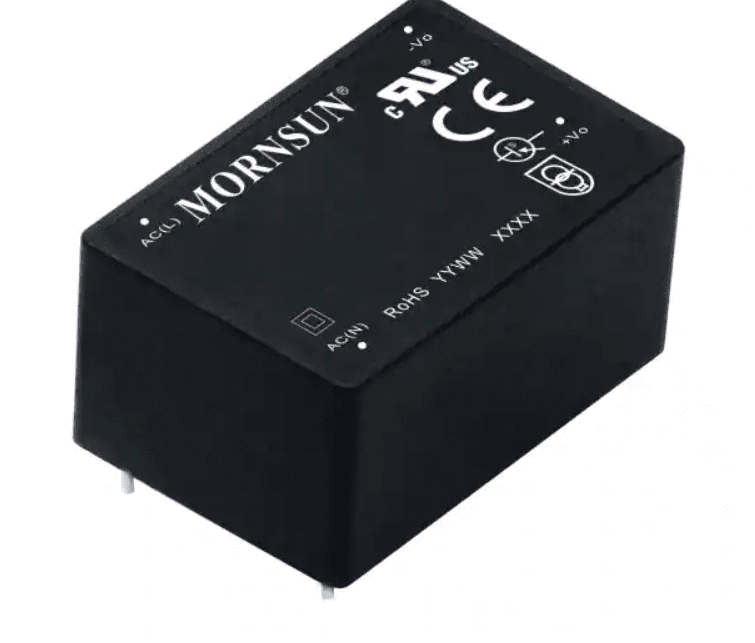

LD10-23B05R2 : 10W,5V PCB Mountable-Isolated AC-DC Converter - PO-1752-D
LD10-23BxxR2 series AC-DC converters is one of Mornsun’s new generation compact size power converter. It features ultra-wide AC input and at the same time accepts DC input voltage, low power consumption, low ripple & noise, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368/EN60335/EN61558 standards. The converters are widely used in industrial, power, home appliances, instrumentation, communication and civil applications.
Get the high-quality PCB Mountable-Isolated AC-DC Converter at the best price in India.
- Ultra-wide 85 - 305 VAC and 100 - 430 VDC input voltage range
- Operating ambient temperature range: -40℃ to +85℃
- Up to 85% efficiency
- No-load power consumption < 0.1 W
- 5000 m altitude application
- EMI performance meets CISPR32/EN55032 CLASS B, EN55014
- IEC/EN/UL62368/EN60335/EN61558 safety approval CB RoHS
