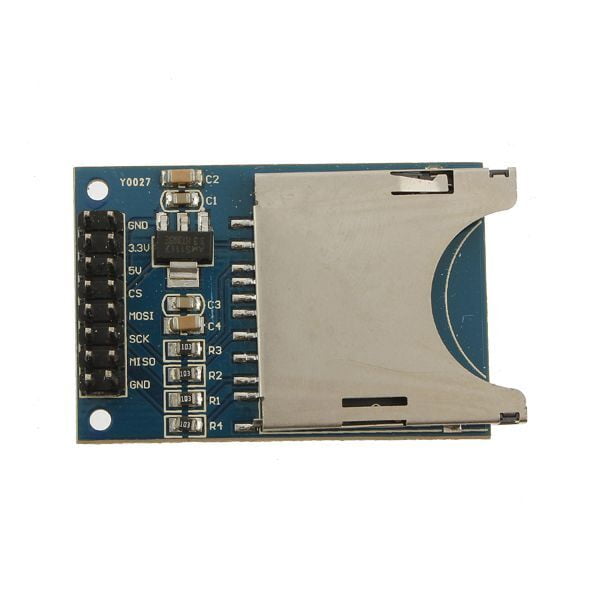

SD CARD READER MODULE-AR-333-D
Visible Manufacture NameMicroadapt
Visible Manufacturer’s codeMA570050
Storing data is one of the most important parts of every project. There are several ways to store data according to the data type and size. SD CARD READER MODULE are one of the most practical ones among the storage devices, which are used in devices such as mobile phones, minicomputers and etc. The SD and micro SD card modules allow you to communicate with the memory card and write or read the information on them. The module interfaces in the SPI protocol.
Get the high-quality SD Card Reader Module at the best price in India.
SD Card Reader Module Features:-
- The level conversion circuit board that can interface level is 5V or 3.3V support micro SD card, micro SDHC card (high-speed card)
- Power supply is 4.5V ~ 5.5V, 3.3V voltage regulator circuit board
- Communication interface is a standard SPI interface
- 4 M2 screw positioning holes for easy installation
- Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin
- Level Conversion Circuit: Micro SD card into the direction of signals into 3.3V, microSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal
- Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is SPI bus, CS is the chip select signal pin
To know more about all latest Products of Arduino Shield Module you can visit at www.campuscomponent.com
