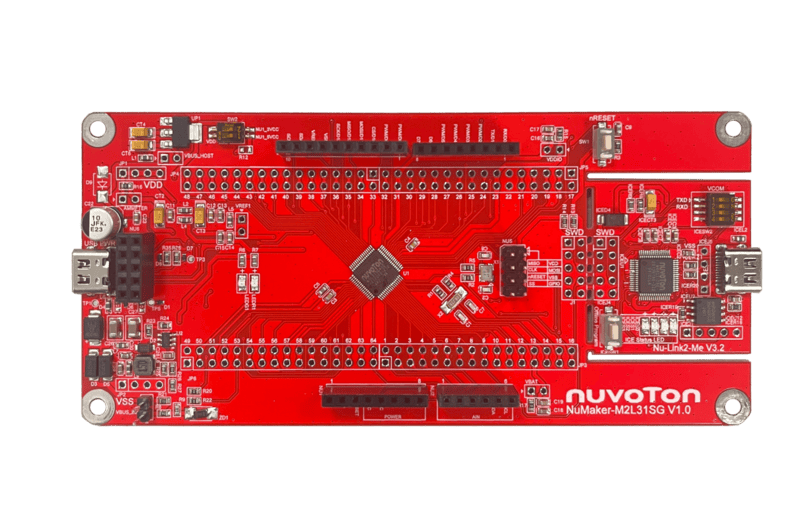

Nuvoton Technology Corporation NK-M2L31SG IC-4205-D
₹4,400.00
SPQ: 1, MOQ:1, Product Package:
Product Details
The NuMicro® M2L31 series is based on Arm Cortex-M23 core at Armv8-M architecture with a single-cycle hardware multiplier/divider. It runs up to 72 MHz and features 64 to 512 Kbytes ReRAM, 40 to 168 Kbytes SRAM, 1.71V to 3.6V operating voltage, -40°C to 105°C wide operating temperature, a variety of packages choices, and excellent high immunity characteristics by 4 KV ESD HBM and 4.4 KV EFT. The dual bank design of 512 Kbytes ReRAM supports firmware update through the Over-The-Air (FOTA) process. The M2L31 series supports Execute-Only Memory (XOM) function to protect confidential program code information from being stolen in the run-time.
Get the high-quality Nuvoton NK-M2L31SG at the best price in India.
Nuvoton M032SE3AE Target Application:-
- Motor Control
- PC Peripherals
- Industrial Automatic Related Products
- Battery Management System
Nuvoton M032SE3AE Target Features:-
- Supports Dual-bank RRAM macro for safe firmware upgrade
- Supports Dual-bank remapping
- Supports 512/256/128/64 Kbytes application ROM (APROM)
- Supports 8 Kbytes loader ROM (LDROM)
- Supports 4 XOM (eXecution Only Memory) regions to conceal user program in APROM
- Supports Data RRAM with configurable memory size
- Supports 256 bytes User Configuration block to control system initiation
- Supports 2 Kbytes one-time-program ROM (OTP)
- Supports Bootloader with native In-System-Programming (ISP) functions
- Supports Secure Boot function for code integrity and authenticity
- Supports 32-bit and word line RRAM programming function
- Supports CRC32 checksum calculation function
- Supports RRAM all one verification function
- Supports In-System-Programming (ISP) / In-Application-Programming (IAP) to update embedded RRAM memory
- Supports cache memory to improve RRAM access performance and reduce power consumption
