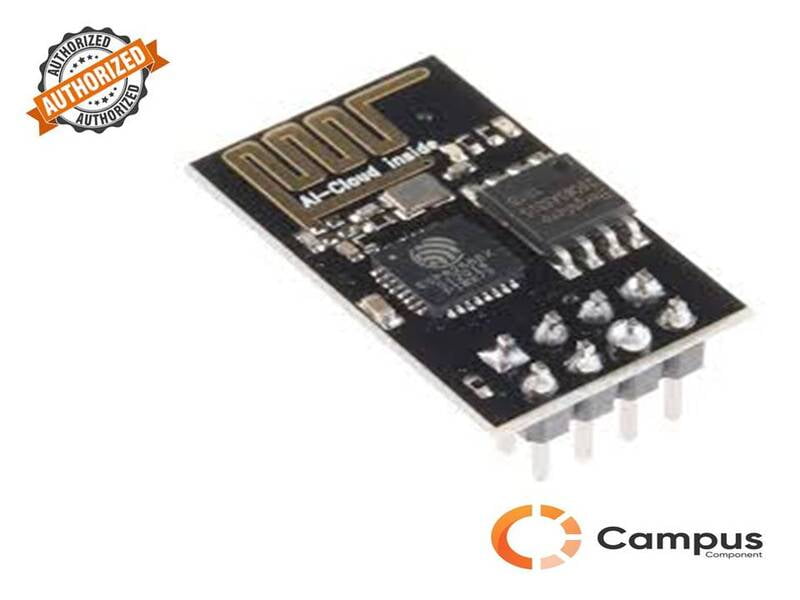

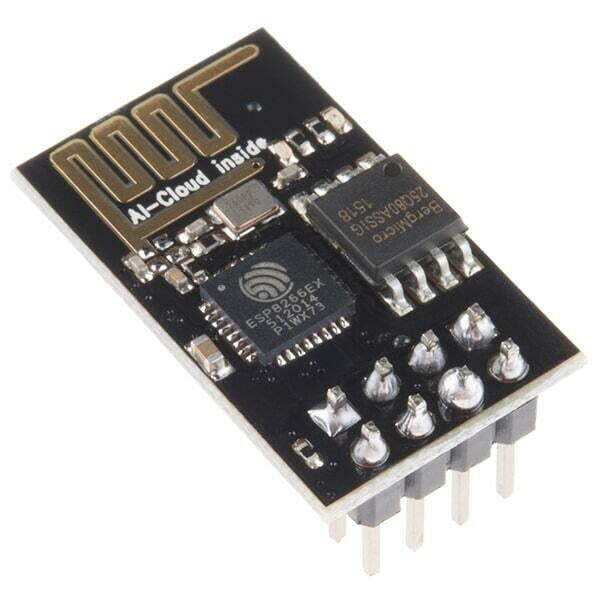

ESP8266 ESP - WI-147-D
Non-returnable
₹220.00
SKU
WI-147-D SPQ
1 MOQ
1 Visible Manufacture Name
Ai Thinker Weight (gm)
0.003Stock Available
60 Choose Quantity
Product Details
1.1 Product Features
- The smallest 802.11b/g/n Wi-Fi SOC module
- Using low-power 32-bit CPU, can also serve as the application
- processor
- Clocked at up to 160MHz
- Built-in 10 bit high precision ADC
- Support UART/GPIO/IIC/PWM/ADC/HSPI and other interfaces
- Integrated Wi-Fi MAC/BB/RF/PA/LNA
- Supports multiple sleep modes, deep sleep current as low as 20uA
- Embedded Lwip protocol stack
- Support STA/AP/STA + AP work mode
- Supports Smart Config/AirKiss key distribution network
- Serial port rate up to 4Mbps
- General AT commands can be used quickly
- Support SDK secondary development
- Supports serial local upgrade and remote firmware upgrade (FOTA)
