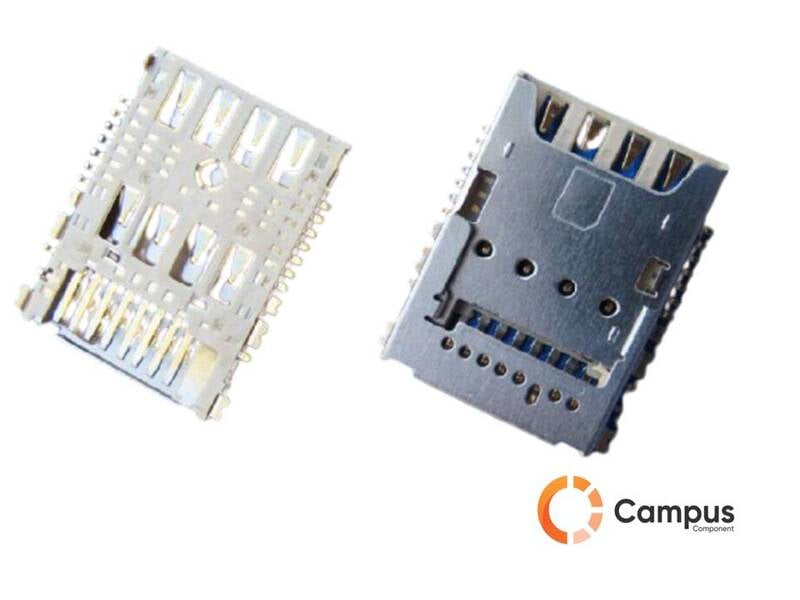

Combo - Micro Sim Card & SD Card Holder -SI-853-D

Technical parameters:

1. Rated current: 0.5A the AC / the DC
2. Rated voltage: 5V the AC / the DC
3. To Operating temperature: -55 deg.] C ~ + 85 deg.] C
4. The Storage Temperature: -55 deg.] C ~ + 85 deg.] C
5. The contact resistance : 100m Ohms MAX.
6. The withstand voltage: 250V AC / 1 Fenzhong
7. insulation resistance: 500M Ohms min./500VDC
8. The durable times: Sim 5000 times microSD 5000 times
9. product temperature: 260 ± 5 deg.] C 10S
10.flatness: 0.10mm the MAX
11. the accord of Compliance RoHS Compliant
12. the stable superior performance

Attachment

1.Combo - Micro Sim Card & SD Card Holder datasheet
