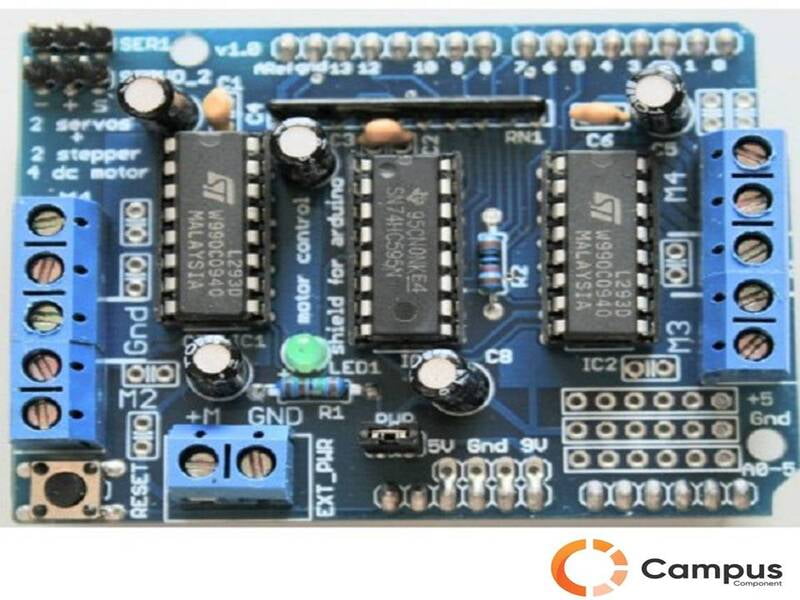

DC Motor/Stepper/Servo Shield for Arduino-AR-140-D
Non-returnable
₹230.00
Product Details
This Arduino compatible motor Driver shield is a full-featured products that it can be used to drive 4 DC motors or two 4-wire stepper and two 5V hobby servo. It drive the DC motor and stepper with the L293D, and it drive the servo with Arduinos pin9 and pin10.
Motor shield for Arduino for driving DC motor, servo motor, stepper motor 2 connections for servo motor. 4 H-Bridges: L293D chipset provides 0. 6A per bridge (1. 2A peak) with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4. 5VDC to 25VDC. Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0. 5 percent resolution) up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
Get the high-quality DC Motor/Stepper/Servo Shield for Arduino at the best price in India.
DC Motor Shield for Arduino Features:-
- 2 x L293D Motor Control Chips
- Reduced control pins needed through 8-stage serial shift registers
- Drive part of the operating current Io: 1.2A (0.6A per bridge)
- External power connection via a screw-terminal block
- Screw-Terminal blocks for connection to motors
- Total of 4 H-Bridges for controlling 4 DC motors or 2 Stepper motors
- 2 x Server ports for controlling RC Hobby Servos
- The logic control voltage Vss: 4.5~5.5V
- Motor Supply Voltage: 4.5 ~ 12V
