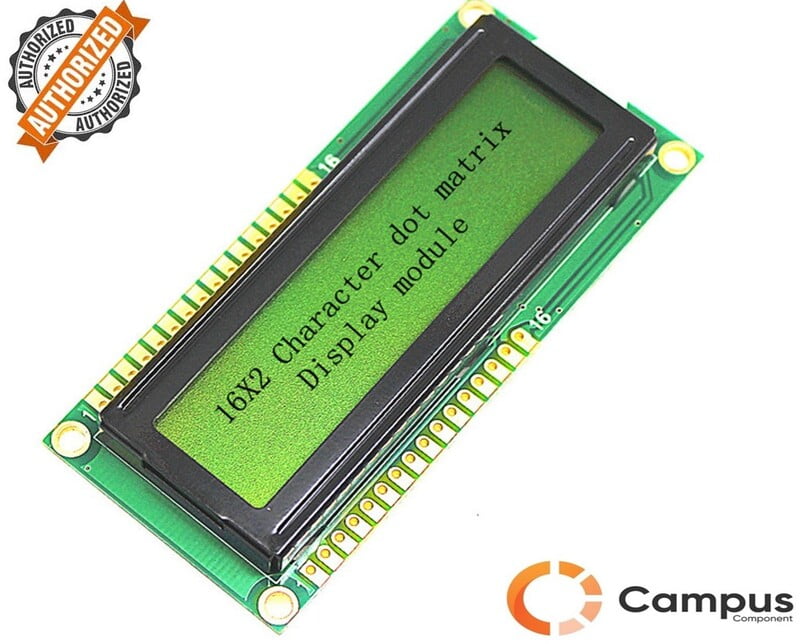

16X2 (S) COB LCD Y/G-3.3 V -LC-557-D

• SDCB1602-01 Series LCD
• Display Contents :16 * 2 Characters (5*8 dots )
• Driving Scheme : 1/16Duty; 1/5Bias
• Viewing Direction :6 0’ clock
• Driver IC :AIP31066
• Interface :Parallel
• Backlight :Yellow-Green
• Operating Temperature :-20 C－﹢70 C
• Storage Temperature :-30 C－﹢80 C
• RoHS Compliant

 2. MECHANICAL SPECIFICATIONS

• Outline Dimensions : 80.00(W) x 36.00(L) x 13.00(H)(mm)
• Viewing Area : 64.50 (W) x 14.50(L)(mm)
• Active Area : 55.70 (W) x 11.00 (L)(mm)
• Character size : 2.90 (W) x 5.15 (L)(mm)
• Character Pitch : 3.52 (W) x 5.85 (L)(mm)
• Dot Pitch : 0.54 (W) x 0.60 (L)(mm)
• Dot Size : 0.59 (W) x 0.65 (L)(mm)

ATTACHMENT:

16X2 (S) COB LCD Y/G-3.3 V- Datasheet
