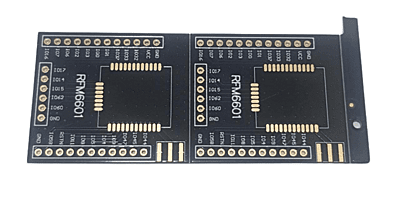

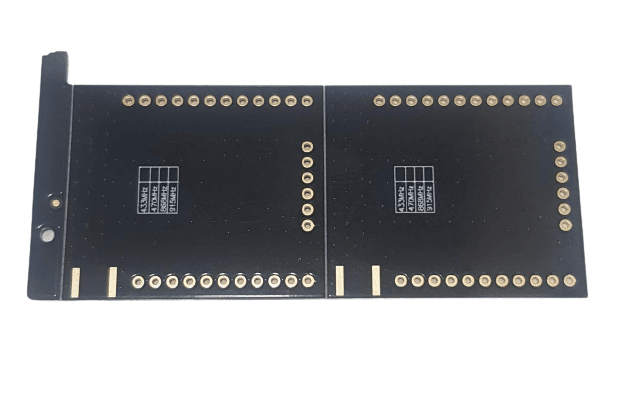

HOEPRF COB board RFM95W-868S2R - WI-3341-D
₹820.00
SPQ: 1, MOQ:1
Product Details
Get the high-quality COB board RFM95W-868S2R at the best price in India.
The RFM95(W) transceivers feature the LoRaTM long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption. Using Hope RF’s patented LoRaTM modulation technique RFM95/96/97/98(W) can achieve a sensitivity of over - 148dBm using a low cost crystal and bill of materials. The high sensitivity combined with the integrated +20 dBm power amplifier yields industry leading link budget making it optimal for any application requiring range or robustness. LoRaTM also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the traditional design compromise between range, interference immunity and energy consumption.
COB board RFM95W-868S2R Specifications:-
- LoRaTM Modem.
- 168 dB maximum link budget.
- +20 dBm - 100 mW constant RF output vs. V supply.
- +14 dBm high efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
