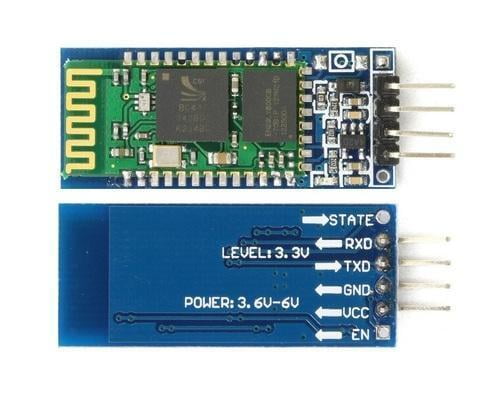

HM-06 is a Bluetooth module designed for establishing short range wireless data communication between two microcontrollers or systems. The module works on Bluetooth 2.0 communication protocol and it can only act as a slave device. This is cheapest method for wireless data transmission and more flexible compared to other methods and it even can transmit files at speed up to 2.1Mb/s. HC-06 uses frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and to have full duplex transmission. The device works on the frequency range from 2.402 GHz to 2.480GHz.
Get the high-quality HC06 Bluetooth Module at the best price in India.
- Wireless transceiver
- Sensitivity (Bit error rate) can reach -80dBm.
- The change range of output’s power: -4 - +6dBm.
- Function description (perfect Bluetooth solution)
- Has an EDR module; and the change range of modulation depth: 2Mbps - 3Mbps.
- Has a build-in 2.4GHz antenna; user needn’t test antenna.
- Has the external 8Mbit FLASH
- Can work at the low voltage (3.1V~4.2V). The current in pairing is in the range of 30~40mA. The current in communication is 8mA.
- Standard HCI Port (UART or USB)
- USB Protocol: Full Speed USB1.1, Compliant With 2.0
- This module can be used in the SMD.
- It’s made through RoHS process. ? The board PIN is half hole size. ? Has a 2.4GHz digital wireless transceiver.
- Bases at CSR BC04 Bluetooth technology. ? Has the function of adaptive frequency hopping. ? Small (27mm×13mm×2mm)
- Peripherals circuit is simple. ? It’s at the Bluetooth class 2 power level. ? Storage temperature range: -40 ? - 85?,work temperature range: -25 ? - +75?
- Any wave inter Interference: 2.4MHz,the power of emitting: 3 dBm.
- Bit error rate: 0. Only the signal decays at the transmission link, bit error may be produced. For example, when RS232 or TTL is being processed, some signals may decay.
- Low power consumption ? Has high-performance wireless transceiver system
HC06 Bluetooth Module Applications:-
- Hobby projects
- Engineering applications
- Mobile Phone Accessories
- Computer Peripherals
- Sports and Leisure Equipment
- USB Dongles
