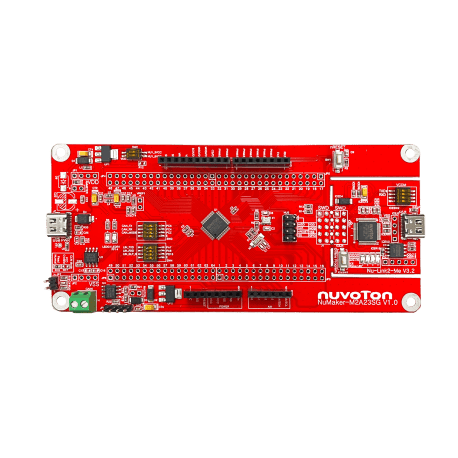

Nuvoton Technology Corporation NK-M2A23SG IC-4206-D
₹3,700.00
Out of stock
SPQ: 1, MOQ:1, Product Package:
Product Details
The NuMicro M2A23 series is an automotive grade microcontroller with -40°C to +125°C operating temperature, 2.5V to 5.5V operating voltage and up to three sets of CAN FD functions to support automotive applications in body control, lighting control, and CAN Bridge/CAN Module.The M2A23 series is based on Arm Cortex-M23 core running up to 72 MHz. It provides up to 256 Kbytes of embedded Flash Memory, 24 Kbytes of embedded SRAM, and 4 Kbytes of Flash loader memory(LDROM) for In-System Programming (ISP) that supports CAN FD/SPI/UART/I2C boot loader function.
The M2A23 series supports plenty of peripherals, including up to four 32-bit timers, 12-ch 16-bit PWM generators, LIN function, two sets of UART with One-Wire mode, IrDA and RS485 functions, one set of 2C, 1 set SPI, two sets of USCI (UART/I2C/SPI) and two sets of LLSI.
Get the high-quality Nuvoton NK-M2A23SG at the best price in India.
Nuvoton NK-M2A23SG Target Application:-
- Body Control
- Ultrasonic Radar
- Advanced Exterior Lighting
- Interior Lighting
- CAN Bridge/CAN Module
- Mini LED
Nuvoton NK-M2A23SG Features :-
- Armv8-M Baseline architecture.
- Armv8-M Baseline Thumb-2 instruction set that combines high code density with 32-bit performance.
- Support for single-cycle I/O access.
- Power control optimization of system components.
- Integrated sleep modes for low power consumption.
- Optimized code fetching for reduced Flash Memory and ROM power consumption.
- A 32-bit Single cycle Hardware multiplier.
- A 32-bit Hardware divider.
- Deterministic, high-performance interrupt handling for time-critical applications.
- Deterministic instruction cycle timing.
- Support for system level debug authentication.
- Support for Arm Debug Interface Architecture ADIv5.1 Serial Wire Debug (SWD).
- ETM for instruction trace.
- Separated privileged and unprivileged modes.
- Security Extension supporting a Secure and a Non-secure state.
- Security Attribution Unit (SAU).
- SysTick timers for both Secure and Non-secure states.
