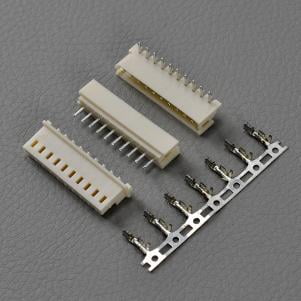

2.50mm Molex 5264 type Wire to Board Connector - CO-1909-D

₹1.00
SPQ
100
MOQ
100
Visible Manufacture Name
UBINTEX
Visible Manufacturer’s code
UBX-XL4-2.50
Brand/MFR No
UBINTEX/UBX-XL4-2.50
Quantity
Add to Cart
Product Details
Product Info:-

KLS1-XL4-2.50-XX-H

Pitch:2.50mm

XX-No.of 02~16 pins

H-Housing  T-Terminal  S-Straight male pin  R-Right angle male pin



Specifications:-

◆Material: PA66 UL 94V-0

◆Contact : Brass

◆Finish : Plated Tin over Nickel

◆Current rating:3.0A AC,DC

◆Voltage rating:250V AC,DC

◆Temperature range:-45℃~+105℃

◆Insulationresistance:1000MΩ Min.

◆Withstanding voltage:1000V AC minute

◆Contact resistance:20mΩ Max.

◆Wire range  : AWG#22~#28
