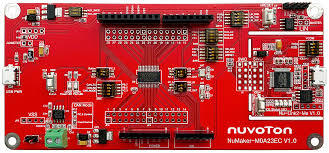

Nuvoton Technology Corporation NK-M0A23EC IC-4207-D
₹4,000.00
SPQ: 1, MOQ:1, Product Package:
Product Details
The NuMicro® M0A21/M0A23 series is a 32-bit microcontroller based on Arm® Cortex®M0 core. It provides compact package with highly flexible digital pin function assignment, rich analog peripherals, -40°C to 125°C operating temperature, 2.4V ~ 5.5V operating voltage, CAN 2.0B and LIN interface for robust communication. The NuMicro® M0A21/M0A23 series targets robust and high operating temperature applications, such as 24 GHz mmWave radar, Battery Management System (BMS), car lighting, electric window lifter, and power seat.
Get the high-quality Nuvoton NK-M0A23EC at the best price in India.
Nuvoton NK-M0A23EC IC Target Application:-
- 24GHz mm Wave radar
- BMS (Battery Management System)
- Industrial control
- Car lighting
- Car windows
- Power seat
Nuvoton NK-M0A23EC IC Target Features :-
- Supports 16/32 Kbytes application ROM (APROM).
- Supports 512-byte page size for 16/32 Kbytes Flash.
- Supports 2 Kbytes loader ROM (LDROM).
- Supports configurable Data Flash size to share with APROM.
- Supports 12 12-byte User Configuration block to control system initialization.
- Supports 512-byte page erase for all embedded Flash.
- Supports CRC-32 checksum calculation function.
- Supports In-System-Programming (ISP) / In-Application-Programming (IAP) to update embedded Flash memory.
Attachment:-
