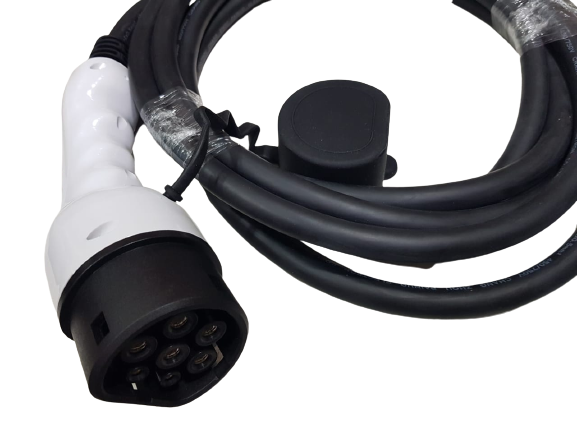

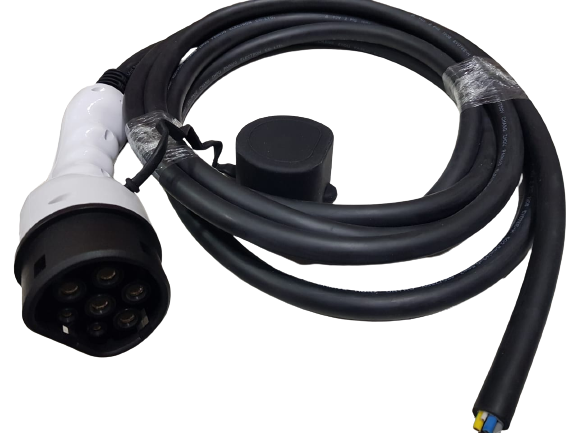

EV 1 charging gun connector - CC-2823-D
Out of stock
₹5,500.00
SPQ
1 MOQ
1 Visible Manufacture Name
Ubintex Brand/MFR No
Ubintex Product Details
Electrical Specifications of EV charging Gun Connector :-
- Rated current:16A or 32A
- Operating Voltage :250/415V
- Insulation resistance:>1000MΩ（DC500V）
- Terminal temperature rise: <50K
- Withstand voltage: 2000V
- Contact Resistance: 0.5mΩ Max
Applied Materials of EV Charging Gun Connector:-
- Case Material :Thermoplastic, flame retardant grade UL94-0
- Contact bush: Copper alloy, silver plating
Environmental performance:-
- Operating temperature :-30° C ~+50 ° C
