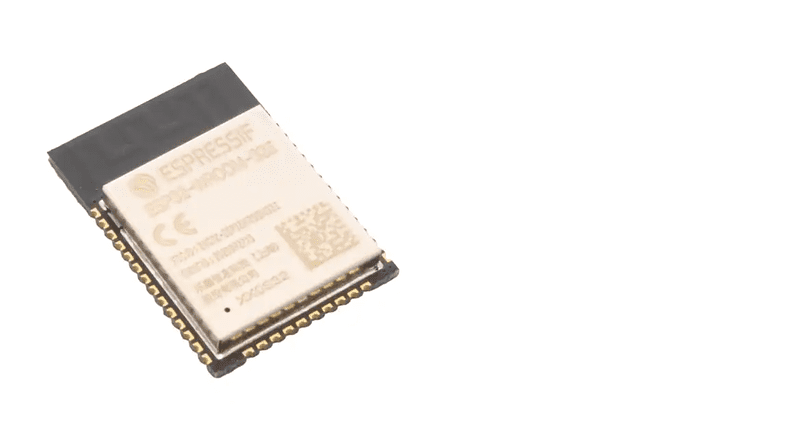

Espressif Systems ESP32-WROOM-32E-N4 4MB-WI-2542-D
Visible Manufacture NameEspressif System
Visible Manufacturer’s codeESP32 WROOM 32E
ESP32-WROOM-32E are two powerful, generic Wi-Fi + Bluetooth + Bluetooth LE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. ESP32-WROOM-32E comes with a PCB antenna, with a connector for an external antenna. The information in this datasheet is applicable to both modules.
Get the high-quality ESP32-WROOM 32E WIFI Module at the best price in India.
CPU and On Chip Memory
- ESP32-D0WD-V3 or ESP32-D0WDR2-V3 embedded, Xtensa dual-core 32-bit LX6 microprocessor, up to 240 MHz
- 448 KB ROM
- 520 KB SRAM
- 16 KB SRAM in RTC
- ESP32-D0WDR2-V3 also provides 2 MB PSRAM
- Bit rate: 802.11n up to 150 Mbps
- A-MPDU and A-MSDU aggregation
- 0.4 μs guard interval support
- Center frequency range of operating channel: 2412 ~ 2484 MHz
- SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, TWAI®
