Espressif Systems ESP32-S2-Saola-1MI-WI-1513-D
Out of stock
₹600.00
SKU
WI-1513-D SPQ
1 MOQ
1 Visible Manufacture Name
Espressif Visible Manufacturer’s code
ESP32-S2-Saola-1MI Weight (gm)
0.0061kg Brand/MFR No
Epressif/ESP32-S2-Saola-1MI Product Details

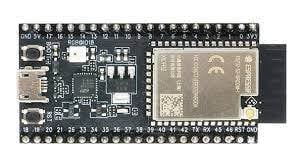

ESP32-S2 general-purpose development board, based on ESP32-S2-WROOM-I, with 4 MB flash and pin header.ESP32-S2-Saola-1MI is a small-sized ESP32-S2 based development board produced by Espressif. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32- S2-Saola-1 on a breadboard.
Get the high-quality ESP32-S2-Saola-1MI WIFI Development Board at the best price in India.
ESP32-S2-Saola-1MI Features:-
Wi-Fi :
- EEE 802.11 b/g/n-compliant
- Supports 20 MHz, 40 MHz bandwidth in 2.4 GHz band
- Single-band 1T1R mode with data rate up to 150 Mbps
- WMM
- TX/RX A-MPDU, RX A-MSDU
- Immediate Block ACK
- Fragmentation and defragmentation
CPU and Memory :
- Xtensa® single-core 32-bit LX7 microprocessor, up to 240 MHz
- 128 KB ROM
- 320 KB SRAM
Advanced Peripheral Interfaces :
- 43 × programmable GPIOs
- 2 × 13-bit SAR ADCs, up to 20 channels
- 2 × 8-bit DAC
- 14 × touch sensing IOs
- 4 × SPI
- 1 × I2S
- 2 × I2C
- 2 × UART
- RMT (TX/RX)
- LED PWM controller, up to 8 channels
To know more about all latest Products of ESP-32 WIFI Modules you can visit at www.campuscomponent.com
