Espressif Systems ESP32-S2-Kaluga-1-WI-1516-D
₹3,200.00
Out of stock
Product Details

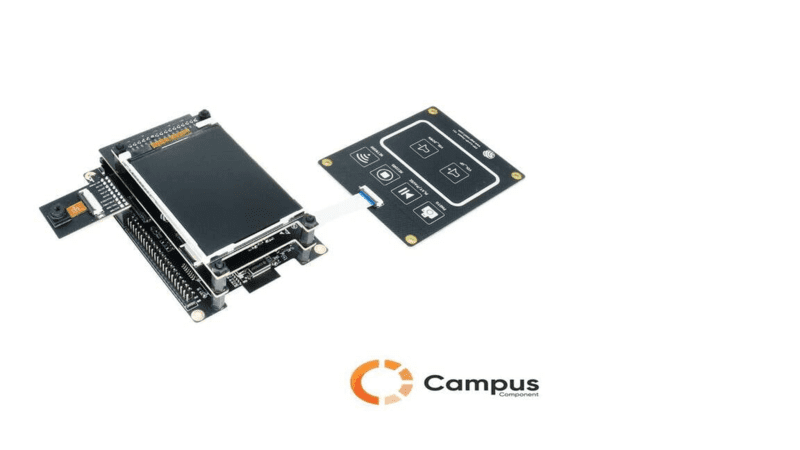

The new multimedia development board ESP32-S2-Kaluga-1 based on ESP32-S2 has various functions, such as an LCD screen display, touch panel control, camera image acquisition, audio playback, etc. It can be flexibly assembled and disassembled, thus fulfilling a variety of customized requirements.
Get the high-quality ESP32-S2-Kaluga WiFi Module at the best price in India.
ESP32-S2-Kaluga Features:-
Touch panel control :
- Six touch buttons
- Supports acrylic panels up to 5 mm
- Wet hand operation
- Water rejection, ESP32-S2 can be configured to disable all touchpads automacally if multiple pads are simultaneously covered with water and to re-enable touchpads if the water is removed
Audio playback :
- Connect speakers to play audio
- Use together with the Touch panel to control audio playback and adjust volume
LCD display :
- LCD interface (8-bit parallel RGB, 8080, and 6800 interface)
Camera image acquisition :
- Supports OV2640 and OV3660 camera modules
- 8-bit DVP image sensor interface (ESP32-S2 also supports 16-bit DVP image sensors, you can design it yourself)
- Clock frequency up to 40 MHz
- Optimized DMA transmission bandwidth for easier transmission of high-resolution images
ESP32-S2-Kaluga Interfaces:-
- SPI
- I2C
- I2S
- UART
- ADC
- DAC
- PWM
