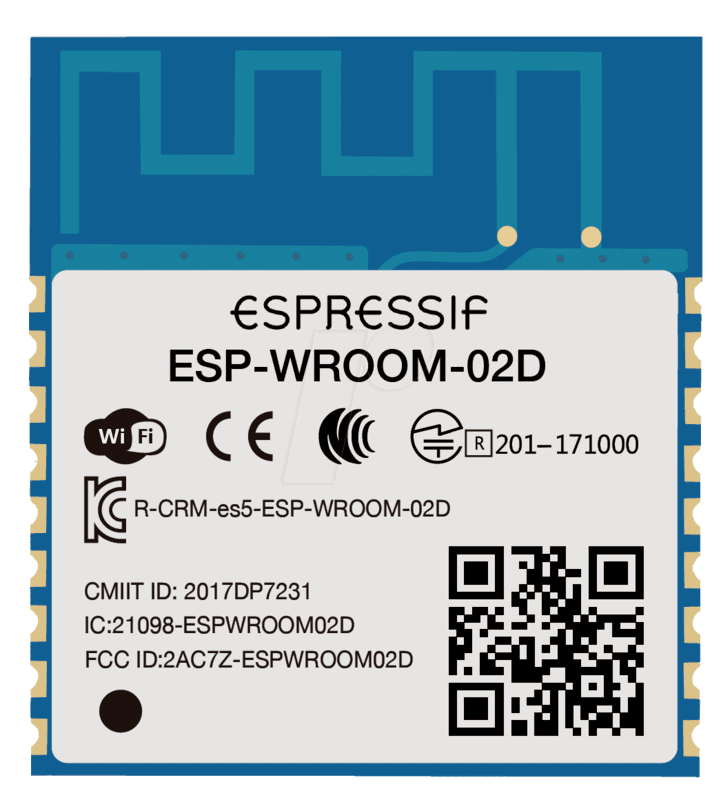

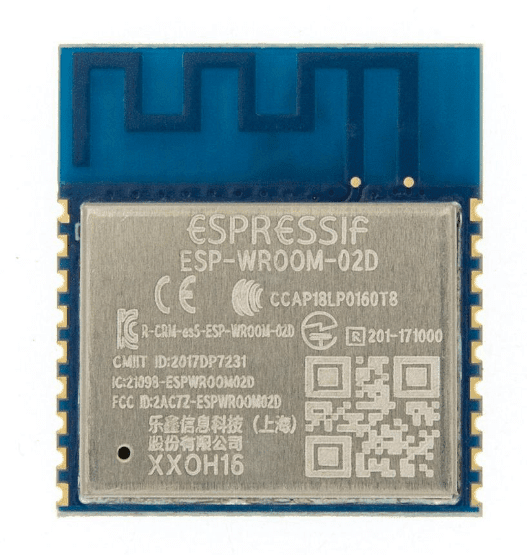

ESP-WROOM-02D-N4-4MB-WI-1665-D
Non-returnable
₹150.00
Out of stock
Product Details
ESP-WROOM-02D are ESP8266EX-based modules developed by Espressif. Compared to ESP-WROOM-02, the RF performance of ESP-WROOM-02D are optimized. The ESP8266EX integrates a Tensilica L106 32-bit RISC processor, which achieves extra-low power consumption and reaches a maximum clock speed of 160 MHz. The Real-Time Operating System (RTOS) and Wi-Fi stack allow 80% of the processing power to be available for user application programming and development.
Get the high-quality ESP32-WROOM-02D-N4-4MB WIFI Module at the best price in India.
ESP-WROOM-02D-N4-4MB Specifications :-
- RF certification: SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC)
- Green certification: RoHS, REACH
- Reliability: HTOL/HTSL/uHAST/TCT/ESD
- Wi-Fi protocols: 802.11 b/g/n
- Frequency range: 2.4 GHz ~ 2.5 GHz (2400 MHz ~ 2483.5 MHz)
- Peripheral interface: UART/HSPI/I2C/I2S/IR Remote Control GPIO/PWM
- Operating voltage: 2.7 V ~ 3.6 V
- Operating current Average: 80 mA
- Minimum current delivered by power supply : 500 mA
- Operating temperature range: -40 °C ~ 85 °C
- Storage temperature: -40 °C ~ 85 °C
To know more about all latest Products of Espressif ESP-32 WIFI Module you can visit at www.campuscomponent.com
