ESP 32 Node Mcu WiFi Development Board-WI-298-D
Non-returnable
SPQ:1,MOQ:1,Product Package:
₹460.00
SPQ
1 MOQ
1 Visible Manufacture Name
AiThinker Weight (gm)
0.01kg Brand/MFR No
AiThinker Choose Quantity
Product Details

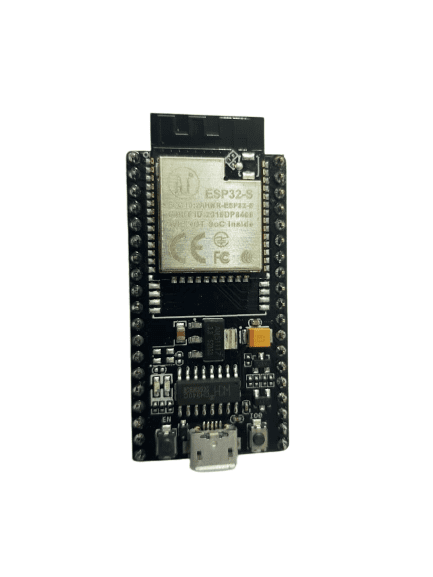

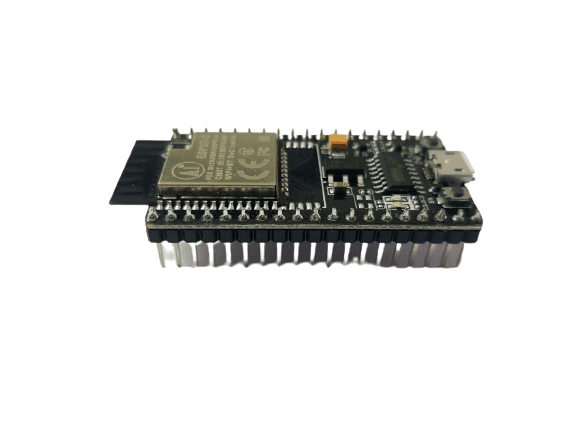

The NodeMCU development board based on ESP32, features WiFi+Bluetooth connectivity, onboard CH340 and keys. What's more, all the I/O pins of ESP32-S module are accessible via the extension headers. The NodeMCU ESP-32S is one of the development board created by NodeMCU to evaluate the ESP-WROOM-32 module. It is based on the ESP32 microcontroller that boasts Wifi, Bluetooth, Ethernet and Low Power support all in a single chip. NodeMCU uses Lua Scripting language and is an open source Internet of Things (IoT) platform.
Get the high-quality ESP 32 Node Mcu WiFi Development Board at the best price in India.
ESP 32 Node Mcu Wifi Development Board Features:-
- Onboard ESP32-S module
- Onboard CH340, USB to UART converter
- USB port for power input, firmware programming, or UART debugging
- 2x19pin extension headers, breakout all the I/O pins of the module
- 2x keys, used as reset or user-defined
ESP 32 Node Mcu WiFi Development Board Specifications:-
- WIFI module: ESP32-S
- Processor: ESP32
- Built-in Flash: 32Mbit
- Antenna: Onboard PCB antenna
- Peripheral interface: UART/GPIO/ADC/DAC/SDIO/PWM/I2C/I2S
- WiFi protocol: IEEE 802.11 b/g/n
- Bluetooth: Bluetooth 4.2
- Frequency range: 2.4G ~ 2.5G (2400M ~ 2483.5M)
- WIFI mode: Station / SoftAP / SoftAP+Station
- Power supply: 5V
- Logic level: 3.3V
- Dimensions: 48.26mm x 25.4mm
ESP 32 Node Mcu IOT applications:-
- Smart home
- Intelligent building
- Industrial automation
- Wearable devices
- IP camera
- Intelligent agriculture
To know more about all latest Products of WiFi Development Board you can visit at www.campuscomponent.com
