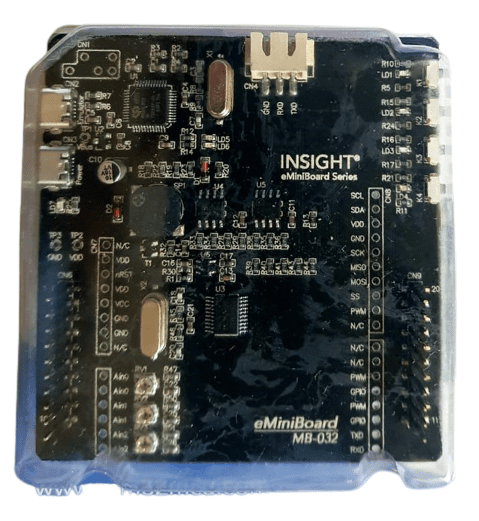

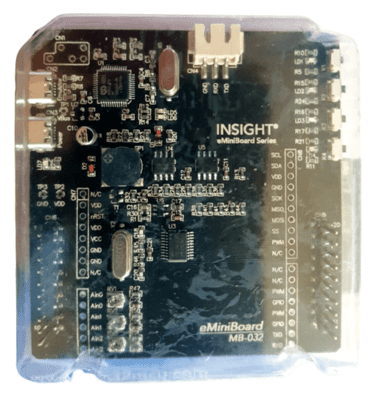

eMini Board MM32F0010A1T MB032 - DE-2619-D

eMini Board MM32F0010A1T MB032 Features:-

•  Support MindMotion MM32 Cortex-M series MCU development evaluation
•  Support integrated development environment of Keil uVision v5.0 / IAR EWARM v7.80 or above
• Support MindMotion MM32 FDS firmware development platform
• Support MindMotion MM32 Program programming software
• Development board MCU power supply based on 3.3V voltage design
• Support up to 4KV EFT anti-interference ability
• Embedded MM32-LINK-OB in-circuit emulator, support SWD debugging interface and
• intelligently connected CDC virtual serial port
• Unified design of component numbers, locations, and functions of common parts of all
• development boards
• Emulator USB interface or target MCU USB interface power supply
• 4-Side button
• 4-LED
• 1-UART Connector
• 1-USB Connector
• 1-CAN Connector(Optional) and CAN driver and terminal matching resistor switch
• 1-16 Mbit SPI Flash memory
• 1-2048 bit I2C EEPROM memory
• 1-Speaker
• 1-3 Analog input potentiometers
• 1-Built-in expansion function and MCU pin function selection switch
• 0.1 inch pitch double-row pin socket with the same MCU pin (some function pins are not led
• out)
• Compatible with Arduino NUO interface, PCB size 3.0*2.85 inches
• Quickly distinguish the blue, black and white PCB color matching of the development board
• function
• SMT manufacturing process
