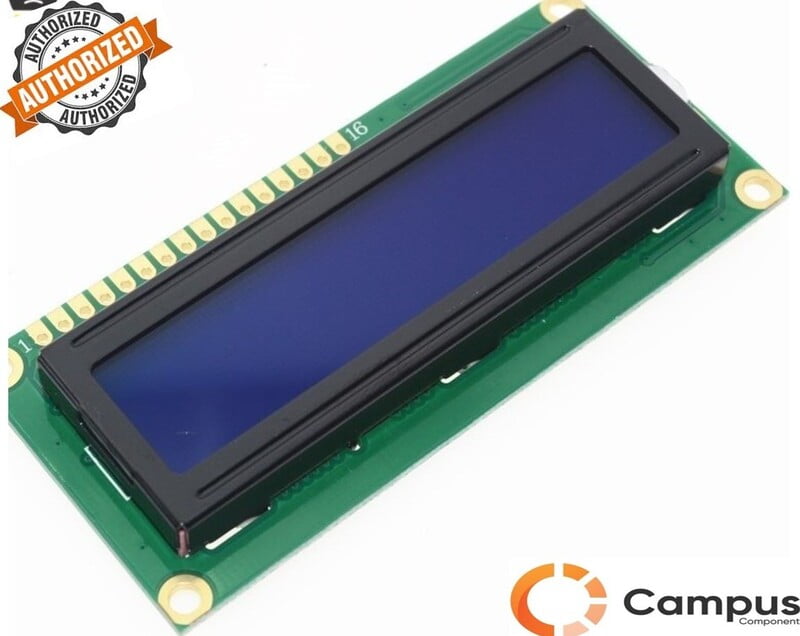

16x2 (S) LCD Blue Backlight Low Height-LC-538-D

• SDCB1602-09 Series LCD
• Display Contents :16 * 2 Characters (5*8 dots )
• Driving Scheme : 1/16Duty; 1/5Bias
• Viewing Direction : 6 0’ clock
• Driver IC : AIP31066
• Interface : Parallel
• Backlight :Blue/White
• Operating Temperature :-20 C－﹢70 C
• Storage Temperature :-30 C－﹢80 C
• RoHS Compliant

2. MECHANICAL SPECIFICATIONS

• Outline Dimensions : 80.00(W) x 36.00(L) x 11.50max(H)(mm)
• Viewing Area : 64.50 (W) x 14.50(L)(mm)
• Active Area : 55.70 (W) x 11.00 (L)(mm)
• Character size : 2.90 (W) x 5.15 (L)(mm)
• Character Pitch : 3.52 (W) x 5.85 (L)(mm)
• Dot Pitch : 0.59 (W) x 0.65 (L)(mm)
• Dot Size : 0.54 (W) x 0.60 (L)(mm)
• Weight : TBD
