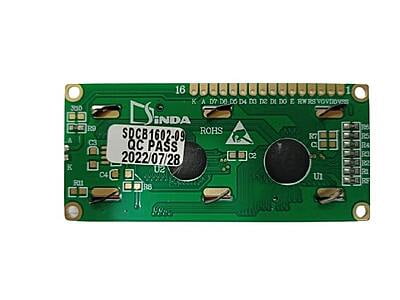

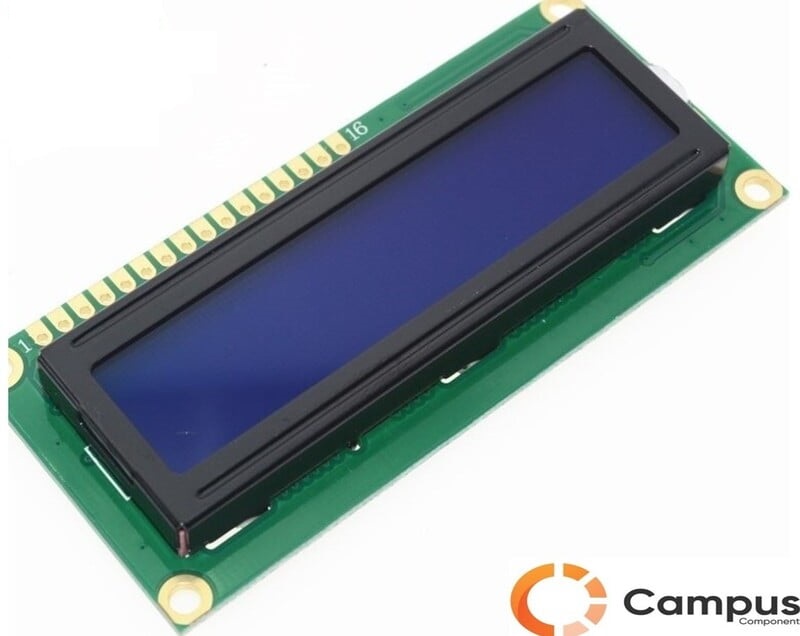

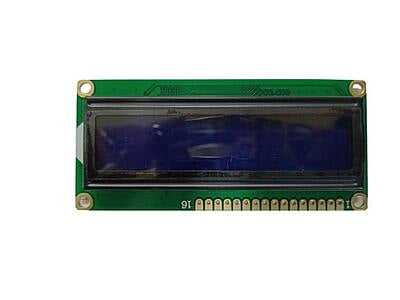

16x2 (S) LCD Blue Backlight Low Height-LC-538-D
Non-returnable
₹110.00
SKU
LC-538-D SPQ
400 MOQ
1 Visible Manufacture Name
SINDA Visible Manufacturer’s code
SDCB1602-09 Weight (gm)
0.04kg Brand/MFR No
SINDA/SDCB1602-09Stock Available
12558 Choose Quantity
Product Details
16x2 (S) LCD Blue Backlight Display is professional Monochrome LCD display for Industry application, include digital panel meter, UPS, inverter, multi-function meter, POS machines, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter, Clock. Our Character LCD Module 16*2 has various different models on shelf and accept custom develop to meet your special requirement. We can develop different interface like I2C, Serial, and we also have different font available.
Get the high-quality 16x2 (S) LCD Blue Backlight at the best price in India.
16x2 (S) LCD Blue Backlight Features:-
- SDCB1602-09 Series LCD
- Display Contents :16 * 2 Characters (5*8 dots )
- Driving Scheme : 1/16Duty; 1/5Bias
- Viewing Direction : 6 0’ clock
- Driver IC : AIP31066
- Interface : Parallel
- Backlight :Blue/White
- Operating Temperature :-20 C－﹢70 C
- Storage Temperature :-30 C－﹢80 C
- RoHS Compliant
16x2 (S) LCD Blue Backlight Specifications:-
- Outline Dimensions : 80.00(W) x 36.00(L) x 11.50max(H)(mm)
- Viewing Area : 64.50 (W) x 14.50(L)(mm)
- Active Area : 55.70 (W) x 11.00 (L)(mm)
- Character size : 2.90 (W) x 5.15 (L)(mm)
- Character Pitch : 3.52 (W) x 5.85 (L)(mm)
- Dot Pitch : 0.59 (W) x 0.65 (L)(mm)
- Dot Size : 0.54 (W) x 0.60 (L)(mm)
Attachment:-
16x2 (S) LCD Blue Backlight Low Height- Datasheet
