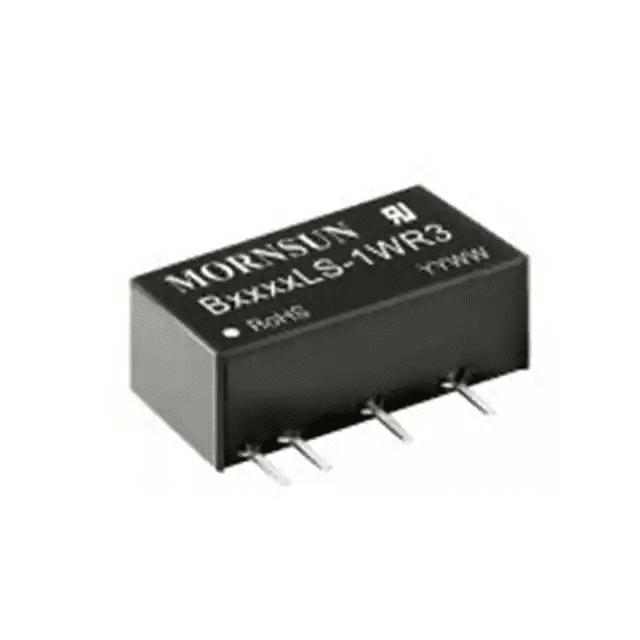

B0512S-1WR3 : 1W,12V - Isolated - DC-DC Converter - PO-1951-D
₹115.00
SPQ
1 MOQ
2 Visible Manufacture Name
MORNSUN POWER SUPPLY Visible Manufacturer’s code
B0512S-1WR3 Brand/MFR No
MORNSUN/B0512S-1WR3Stock Available
120 Choose Quantity
Product Details
Get the high-quality B0512S-1WR3 : 1W,12V - Isolated - DC-DC Converter at the best price in India.
Features of DC-DC Converter:-
- Continuous short-circuit protection
- No-load input current as low as 5mA
- Operating temperature range: -40℃ to +105℃
- High efficiency up to 85%
- Isolation voltage:1.5K VDC/min, 3K VDC/1s
- International standard pin-out
- Compact SIP package
- UL62368, EN62368 approva
Mechanical Data of DC-DC Converter:-
- Inputs: 5V to 24Vdc
- Outputs: 3V3 to 24V dc
- Power: 1 Watt
- Tamb: -40°C to +105°C
- Dims: 11.60 x 6.00 x 10.16 mm
- 1500V Isolation, 3kV (1 sec)
