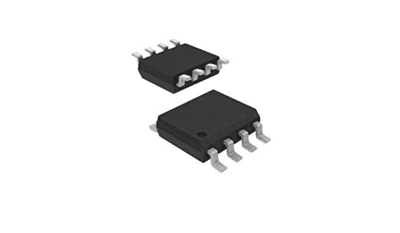

A7425M8R- DC DC converter
Non-returnable
₹30.00
Out of stock
Product Details
A7425 is a wide input voltage, high efficiency current mode Synchronous step-down DC/DC converter. A7425 provides up to 2.5A output current at 500kHz switching frequency. A7425 integrates a 130mΩ high side and an 80mΩ low side MOSFET to achieve high conversion efficiency up to 96%. The current mode control architecture supports fast transient response and simple compensation circuit. Protection features include cycle-by-cycle current limit, thermal shutdown, and short circuit protection.
Get the high-quality A7425M8R- DC DC converter at the best price in India.
A7425M8R- DC DC converter Features:-
- Up to 40V Input Surge Voltage
- Continuous Operating Input Voltage up to 36V
- Up to 2.5A Output Current
- 500kHz Switching Frequency
- Up to 96% Efficiency
- Stable with Low-ESR Ceramic Output Capacitors
- Resistor Programmable High-Side MOSFET Peak Current Limit from 1.0A to 3.5A
- ±2% Feedback Voltage Accuracy
- Power Saving Mode reduces the quiescent current to 0.9mA
- Advanced Feature Set Integrated Soft-Start of Thermal Shutdown Cycle-by-Cycle Current Limit protection
- Available in SOP8 package
