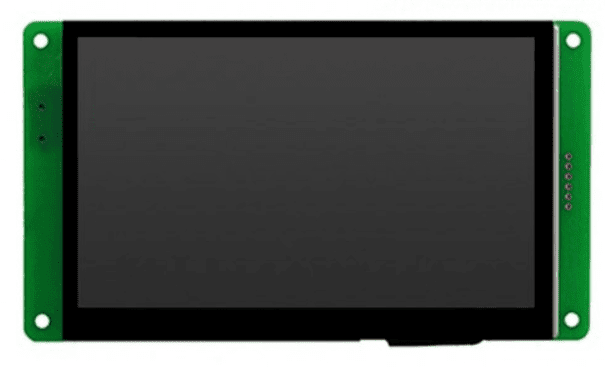

DWIN 5.0'' LCD Capacitive Touchscreen Display DMG80480C050-03WTC - LC-2851-D

Get the high-quality DWIN 5.0" DWIN Capacitive Touch Monitor at the best price in India.

5.0" Capacitive Smart display is very easy to use and integrate with your embedded circuit with a simple serial UART interface. DWIN Displays are high quality and cost effective smart HMI touchscreens. The DMG80480C050 5.0" Smart Capacitive Touchscreen Display can easily be interfaced with microcontrollers & controller boards like Arduino Uno, Arduino Nano, Arduino Mega, ESP8266, ESP32, PIC Microcontrollers, 8051 family of microcontrollers, etc. This Smart displays are based on T5/T5L ASIC chip which is a dual core high performance GUI Asic which supports DGUS & OS  development mode.

Get the high-quality 5.0 Smart Capacitive Touchscreen Display DMG80480C050-03WTC at the best price in India

5.0 Smart Capacitive Touchscreen Display DMG80480C050-03WTC:-

• Size: 5.0"
• Touch Type: Capacitive
• Resolution: 800x480
• Grade: Commercial
• Color: 16.7M Colors; 24 Bit
• Dimensions: 143.5 mm (W) x 80.9 mm (H) x 15.4 mm (T)
• Backlight: LED
• Brightness: 200 nit
• Operating Voltage: 5 Volts
• Operating Current: 70ma to 240ma
• Working Temperature: -20 to 70°C

Explore all the Latest Products of DWIN Display

Attachment:-

5.0 Smart Capacitive Touchscreen Display DMG80480C050-03WTC Datasheet
