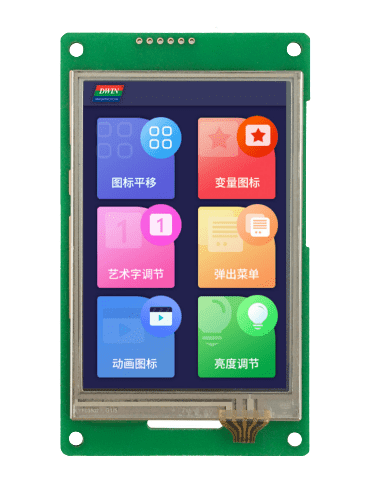

3.5" DWIN Smart LCM DMG48320C035-03WTR

DWIN 3.5" smart LCM DMG48320C035-03WTR - LC-2848-D

₹1,794.00
SPQ
1
MOQ
1
Visible Manufacture Name
DWIN
Visible Manufacturer’s code
DMG48320C035-03WTR
Weight (gm)
04
Brand/MFR No
DWIN/DMG48320C035_03WTR
Quantity
Add to Cart
Product Details

Get the high-quality DWIN 3.5" Smart LCD Display at the best price in India.

3.5 inch smart LCM DMG48320C035_03WTR Features:-
  • Self-designed T5L ASIC, 16.7M Colors, 24bit,320*480 Pixel, G+G structure
  • Without touch screen/Resistive touch screen/Capacitive touch screen
  • TTL/CMOS;10Pin_1.0mm
  • Download via SD card or on-line serial port
  • It is very easy to use the DWIN DGUS V7.6 GUIs Development, no coding skills required
  • Two Development System: DGUS II/ TA(Instruction set)
  • IPS wide viewing angle: 85°/85°/85°/85° (L/R/U/D)
  • Based on T5L1, running DGUS II system, commercial grade.
  • 3.5-inch, 320*480 pixels resolution, 16.7M colors, IPS-TFT-LCD, wide viewing angle.
  • Capacitive touch screen.

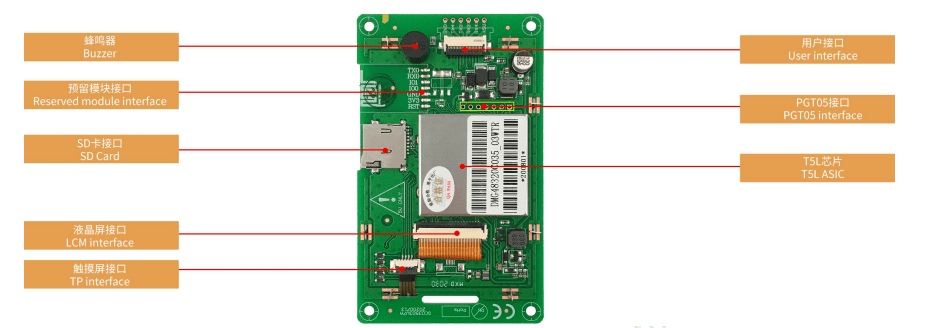

Interfacing Diagram of LCM DMG48320C035_03WTR:-




3.5 inch smart LCM DMG48320C035_03WTR Specifications:-
  • Color: 16.7M colors
  • LCD Type: IPS, TFT LCD
  • Resolution: 320×480
  • Power Voltage: 4.5~5.5V
  • Operation Current: VCC = +5V, Backlight on,130mA , VCC = +5V, Backlight off,40mA
  • Output Voltage: Output 1, Iout = 1mA;3.0~3.3 V , Output 0, Iout =-1mA;0~0.3 V
  • Interface: UART2: TTL/CMOS UART4: TTL/CMOS(Only available after OS configuration)10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s
Explore all the Latest Products of DWIN Display.

Attachment:-
