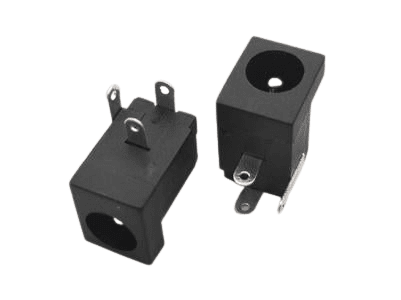

DC Power Jack - CO-1903-D

DC Power Jack - CO-1903-D

₹3.00
Out of stock
SPQ
100
MOQ
1
Visible Manufacture Name
KLS Electronics
Visible Manufacturer’s code
KLS1-DC-005A
Brand/MFR No
KLS Electronics/KLS1-DC-005A
Add to Cart
Product Details

DC Power Jack Technical parameters:-

  • Contact resistance: 0.03Ω, max
  • Insulation resistance: 100MΩ, min
  • Pressure: AC500V (50Hz) / 1minute
  • Rated Load: DC 16V 2.0A Max
  • Actuating Force: 3~20N
  • Life: 5000 times
  • Operating Temperature: -30ºC ~ 70ºC

DC Power Jack Material:-

  • Centre Pin : Copper
  • Terminal 1 : Brass
  • Terminal 2 : Copper alloy
  • Terminal 3 : Brass
  • Housing : PBT
  • Cover : PBT
